DZOZO S029 Modern Wall-Hung Smart Toilet with Full-Auto Operation & Easy-Clean Ceramic Bowl | OEM/ODM
One-Line Product Positioning

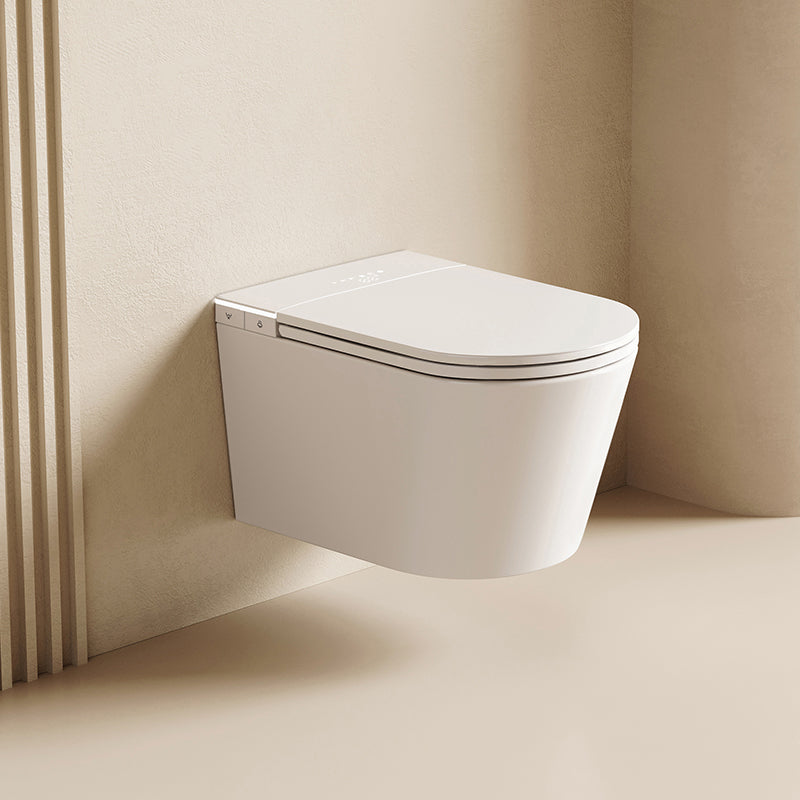

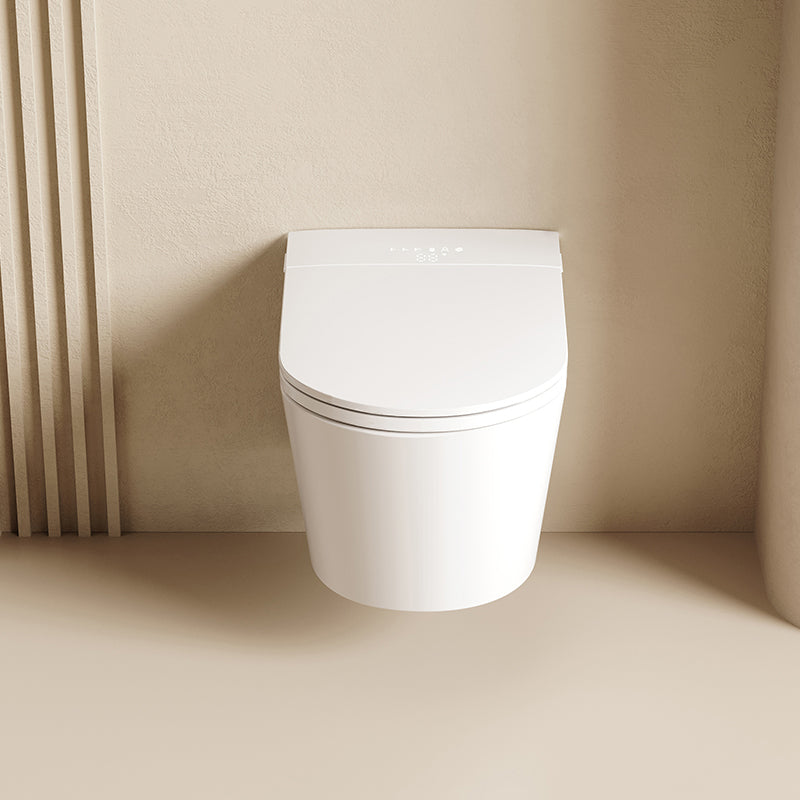

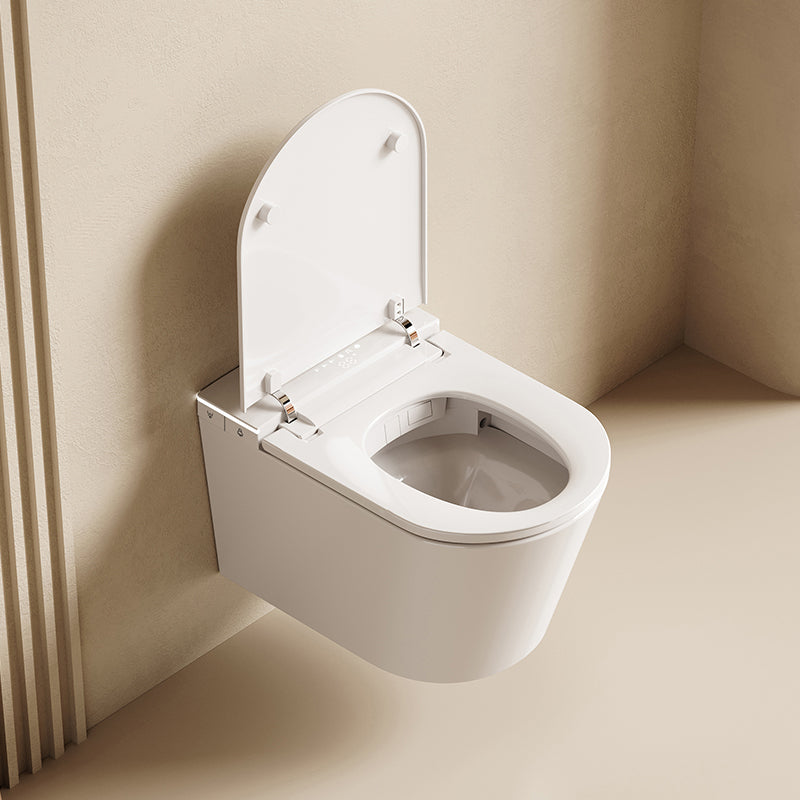

The S029 is a modern wall-hung smart toilet combining concealed installation, an easy-clean ceramic bowl, instant warm-water washing, foam-shield protection, and full-auto operation.
Product Overview

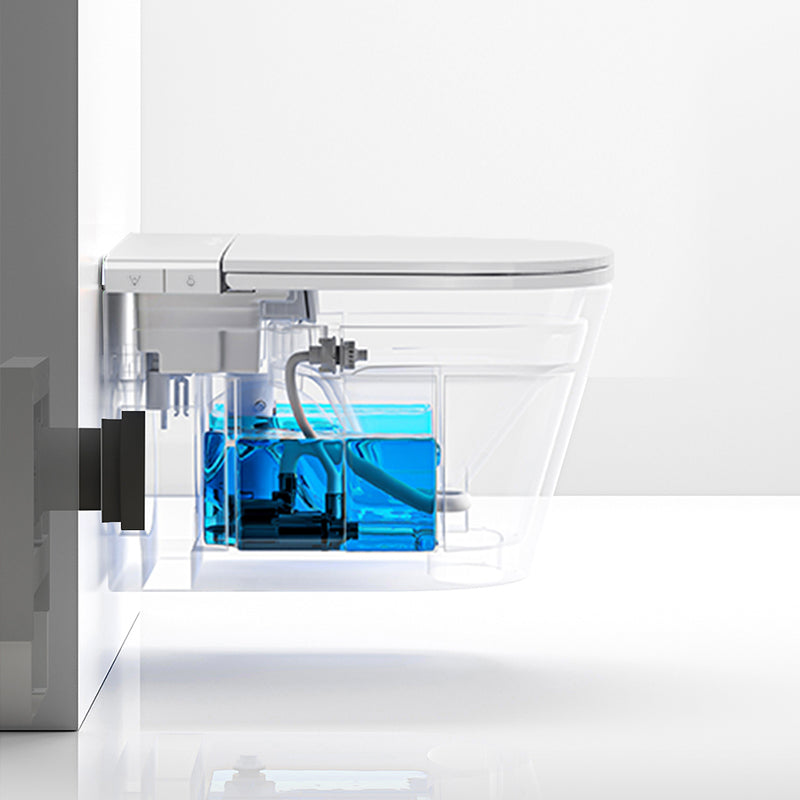

The DZOZO S029 is designed for modern bathrooms that require space efficiency, advanced hygiene, and a clean architectural appearance. Its compact wall-hung body conceals the mounting system, drainage pipe, water supply, and electrical connection inside the wall.
The easy-clean ceramic bowl and wall-mounted design simplify bathroom maintenance by reducing exposed connections and leaving the floor underneath accessible. The S029 integrates instant warm-water washing, adjustable water pressure, a heated seat, warm-air drying, automatic deodorization, foam-shield protection, and automatic flushing.
Optional voice control, human presence sensing, foot-sensor operation, automatic lid opening, UV nozzle sterilization, and high-speed drying are available. Voltage, functions, color, branding, instruction manuals, and packaging can be customized through our OEM/ODM service.
Key Features
Modern Wall-Hung Design

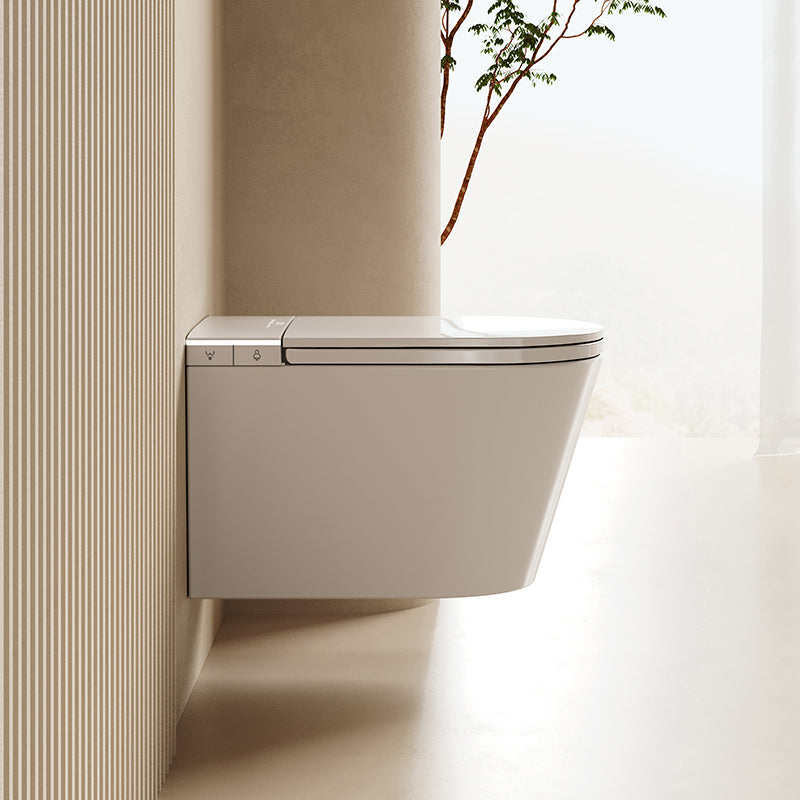

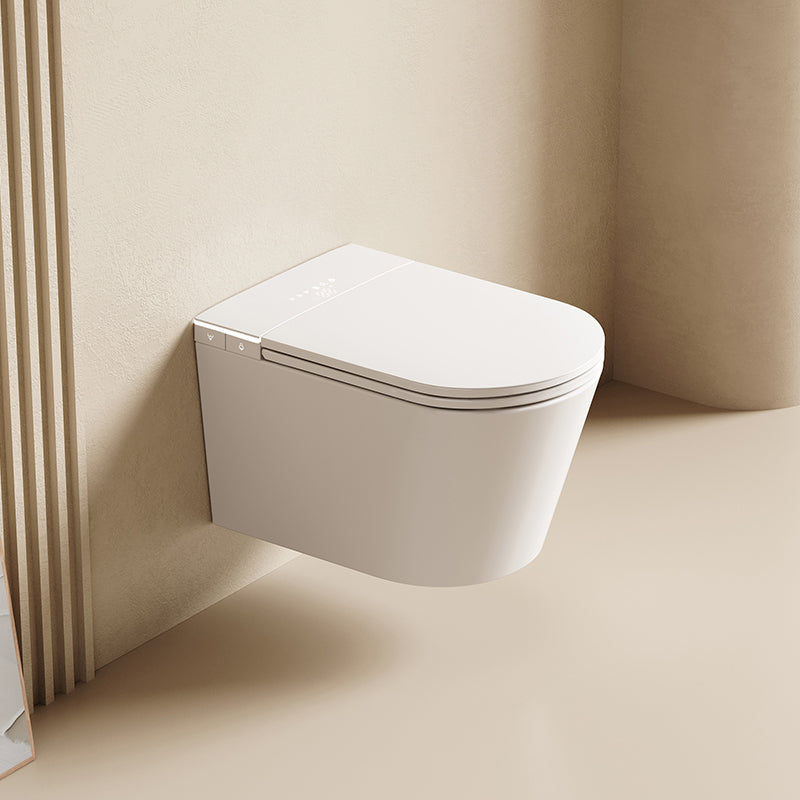

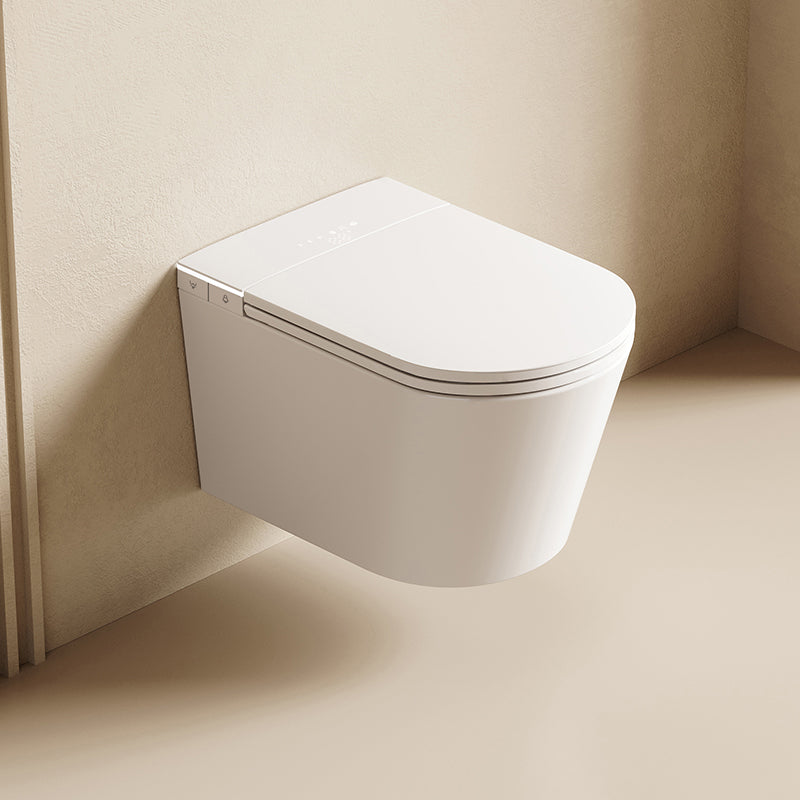

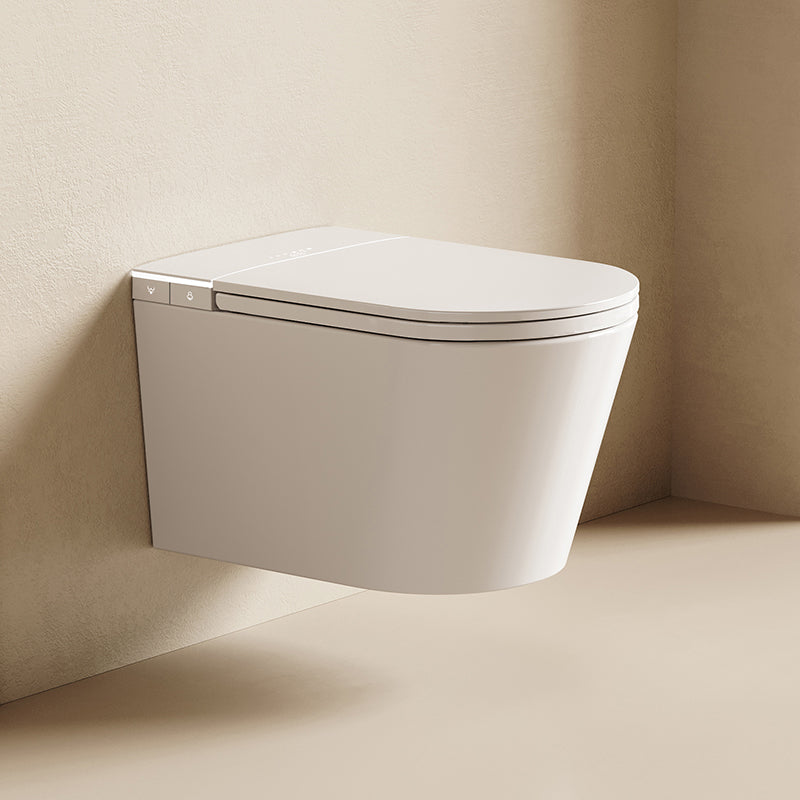

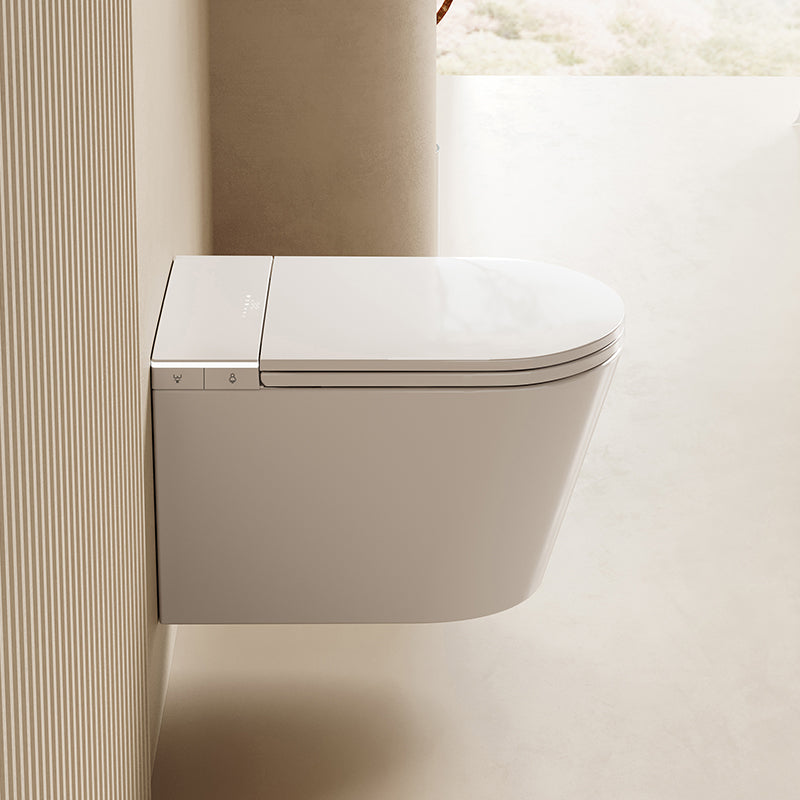

The compact wall-mounted body creates a streamlined appearance while leaving the floor underneath accessible for easier cleaning.
Easy-Clean Ceramic Bowl
The smooth ceramic surface and concealed installation help reduce exposed dirt-collecting areas and simplify routine bathroom maintenance.
Instant Warm-Water Washing
The instant heating system supplies warm water on demand. Rear wash, front wash, oscillating wash, massage wash, and child wash modes are available.
Full-Auto Touch-Free Operation
Human presence sensing, automatic lid opening, foot-sensor operation, and automatic flushing provide a convenient hands-free experience.
Foam-Shield Protection
The foam shield covers the water surface to help reduce splashing, unpleasant odors, and waste adhesion inside the bowl.
Personalized Washing Settings
Users can select four water-temperature settings, three water-pressure levels, and five nozzle positions for personalized comfort.
Heated Seat and Warm-Air Drying
Four seat-temperature settings and four drying-temperature settings provide comfortable use throughout the year. High-speed drying is available as an optional configuration.
Optional Voice Control
Voice commands can control washing, drying, flushing, lid functions, temperatures, water pressure, lighting, ECO mode, speaker volume, and other functions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | S029 |
| Product Type | Integrated wall-hung full smart toilet |
| Toilet Body Dimensions | Approximately 548 × 375 × 320 mm |
| Installed Seat Height | Approximately 400 mm |
| Rear Installation Height | Approximately 440 mm |
| Height with Lid Open | Approximately 865 mm |
| Standard Color | White |
| Optional Colors | Available subject to order quantity |
| Ceramic Surface | Smooth easy-clean ceramic bowl |
| Installation Type | Wall-hung installation with in-wall mounting bracket |
| Rough-In | Not applicable; this model uses a wall outlet |
| Wall Outlet Position | Must follow the supplied installation template before wall construction |
| Drainage Type | Wall outlet |
| Trap Type | P-trap |
| Outlet Diameter | ≤80 mm |
| Flushing System | Siphonic jet flushing |
| Flush Volume | Approximately 5.0 L |
| Water Pressure Range | 0.08-0.75 MPa |
| Rated Voltage | 110V/60Hz or 220V/50Hz |
| Rated Power | Approximately 1150W / 1050W, depending on voltage configuration |
| Waterproof Rating | IPX4 |
| Power Cord Length | Approximately 1.5 m |
| Plug Type | US / EU / UK / AU / customized electrical connection |
| Water Heating System | Instant heating |
| Instant Heating Power | Up to approximately 1600W, depending on configuration |
| Water Temperature Settings | Ambient / 33°C / 37°C / 39°C |
| Water Pressure Settings | 3 levels |
| Nozzle Position Settings | 5 levels |
| Washing Modes | Rear wash / front wash / oscillating wash / massage wash / child wash |
| Nozzle Cleaning | Automatic self-cleaning |
| Heated Seat Power | Approximately 50W |
| Seat Temperature Settings | Ambient / 33°C / 37°C / 39°C |
| Drying Heater Power | Approximately 230W |
| Drying Temperature Settings | Ambient / 45°C / 50°C / 55°C |
| High-Speed Drying | Optional |
| Automatic Deodorization | Available |
| Air Refreshing | Available depending on configuration |
| Foam Shield | Available depending on configuration |
| Human Presence Sensor | Available depending on configuration |
| Foot-Sensor Flushing | Optional |
| Foot-Sensor Lid/Seat Operation | Optional |
| Automatic Lid Opening | Optional |
| Automatic Flushing | Available |
| Bowl Pre-Wetting | Available depending on configuration |
| Ambient Light | Available |
| Night Light | Available |
| Digital Display | Water, seat and drying-air temperature display |
| Voice Control | Optional; language and commands depend on configuration |
| User Memory | User 1 and User 2 settings |
| ECO Mode | Available |
| UV Nozzle Sterilization | Optional |
| Power-Outage Flushing | Supported with backup battery |
| Antibacterial Components | Seat and nozzle, depending on configuration |
| Operation | Side control buttons and remote control |
| Safety Protection | Thermal fuse, ground protection, thermostat, temperature sensors and over-temperature protection |
| Water and Energy Efficiency | Level 2 according to the instruction manual |
| Available Certification | CE |
Wall-Hung Installation Requirements

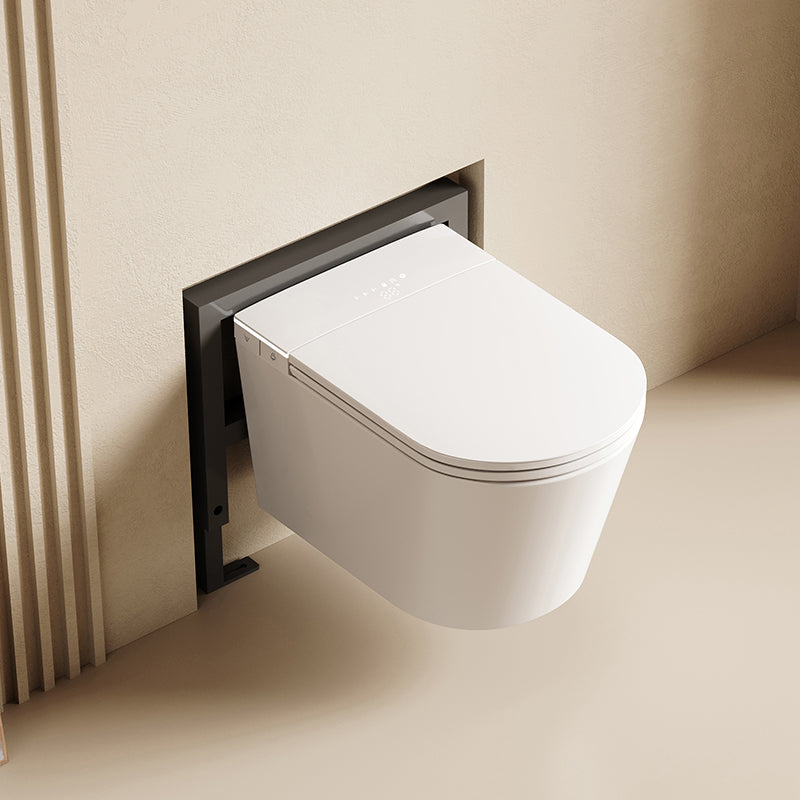

- The S029 requires an in-wall mounting bracket.
- Water, drainage, and electrical connections must be prepared before wall finishing.
- The toilet uses a wall outlet and P-trap drainage system.
- The drainage outlet position must follow the supplied installation template.
- A G1/2 water supply connection is required.
- The wall and floor structure must securely support the mounting bracket.
- The installation template should be rechecked before tiling.
- Plumbing and electrical work should be completed by qualified technicians.
- This model does not use a conventional 305 mm or 400 mm floor rough-in.
- Sufficient water flow and pressure must be confirmed before installation.
Safety and Hygiene Features
- Seat occupancy sensor
- Water-temperature sensor
- Seat-temperature sensor
- Drying-air temperature sensor
- Thermostat protection
- Thermal fuse protection
- Ground protection
- Over-temperature protection
- Anti-backflow protection
- Anti-siphon protection
- Water filtration
- Automatic nozzle cleaning
- Optional UV nozzle sterilization
- Automatic deodorization
- Foam-shield splash and odor protection
- Bowl pre-wetting
- Antibacterial seat and nozzle options
- Low-temperature burn protection
- Power-outage flushing
Available Functions and Options
- Rear wash
- Front wash
- Oscillating wash
- Massage washing
- Child wash
- Adjustable water temperature
- Adjustable water pressure
- Adjustable nozzle position
- Heated seat
- Warm-air drying
- High-speed drying
- Foam-shield system
- Automatic deodorization
- Air-refreshing system
- Human presence sensing
- Foot-sensor flushing
- Foot-sensor lid and seat operation
- Automatic lid opening and closing
- Automatic flushing after use
- Automatic bowl pre-wetting
- Voice control
- User memory
- ECO mode
- UV nozzle sterilization
- Ambient light
- Night light
- Backup battery flushing
- Customized in-wall installation configuration
OEM/ODM Customization
We support OEM and ODM customization for:
- Product functions and configuration
- Voice-control language and commands
- Voltage and frequency
- Electrical connection and plug type
- In-wall mounting configuration
- Product color and decorative parts
- Customer logo and product nameplate
- Digital display and control-panel design
- Remote-control design
- Instruction manual and language
- Product labels and barcodes
- Retail and export packaging
- Private-label production
Order Information
| Order Item | Details |
|---|---|
| Minimum Order Quantity | 1 unit |
| Sample Lead Time | Approximately 10 days |
| Mass Production Lead Time | Approximately 30 days |
| Available Certification | CE |
| Packaging | Kraft carton with reinforced wooden frame |
| OEM/ODM | Functions, configuration, branding and packaging |
| Warranty | Subject to order agreement and target market |
| Spare Parts Support | Available |
Replacement parts can include remote controls, control boards, nozzles, sensors, water inlet components, foam-system components, drying components, backup batteries, mounting components, and other service parts.
Request a Quote or Sample
Please provide your target market, required quantity, voltage, electrical connection, wall construction details, and preferred functions. Our team will recommend the correct S029 configuration and provide an OEM quotation.
