DZOZO S042 Compact Fully Smart Toilet with Double-Pump Boost | OEM/ODM
A compact fully smart toilet combining double-pump boosted flushing, touchless operation and configurable hygiene functions for residential, hospitality and commercial projects.
Product Overview
The DZOZO S042 is a compact floor-mounted smart toilet designed for distributors, sanitary ware brands, hotels, apartments and project buyers. Its 590 mm body helps save bathroom space while providing integrated washing, drying, flushing and intelligent control functions.
A built-in water tank and double-pump booster deliver reliable flushing performance under suitable water-supply conditions. Automatic lid operation, foot-sensor control, foam-shield protection, UV nozzle sterilization, high-speed drying and optional voice control create a convenient, hygienic user experience.
Configurations can be adapted for different markets, including functions, voltage, plug type, color, logo and packaging.
Core Selling Points
-
Compact 590 mm Body
Space-saving design suitable for apartments, hotels and bathrooms with limited installation space. -
Double-Pump Boosted Flushing
Built-in water storage and dual-pump assistance provide strong, stable flushing performance. -
Automatic Lid and Foot-Sensor Control

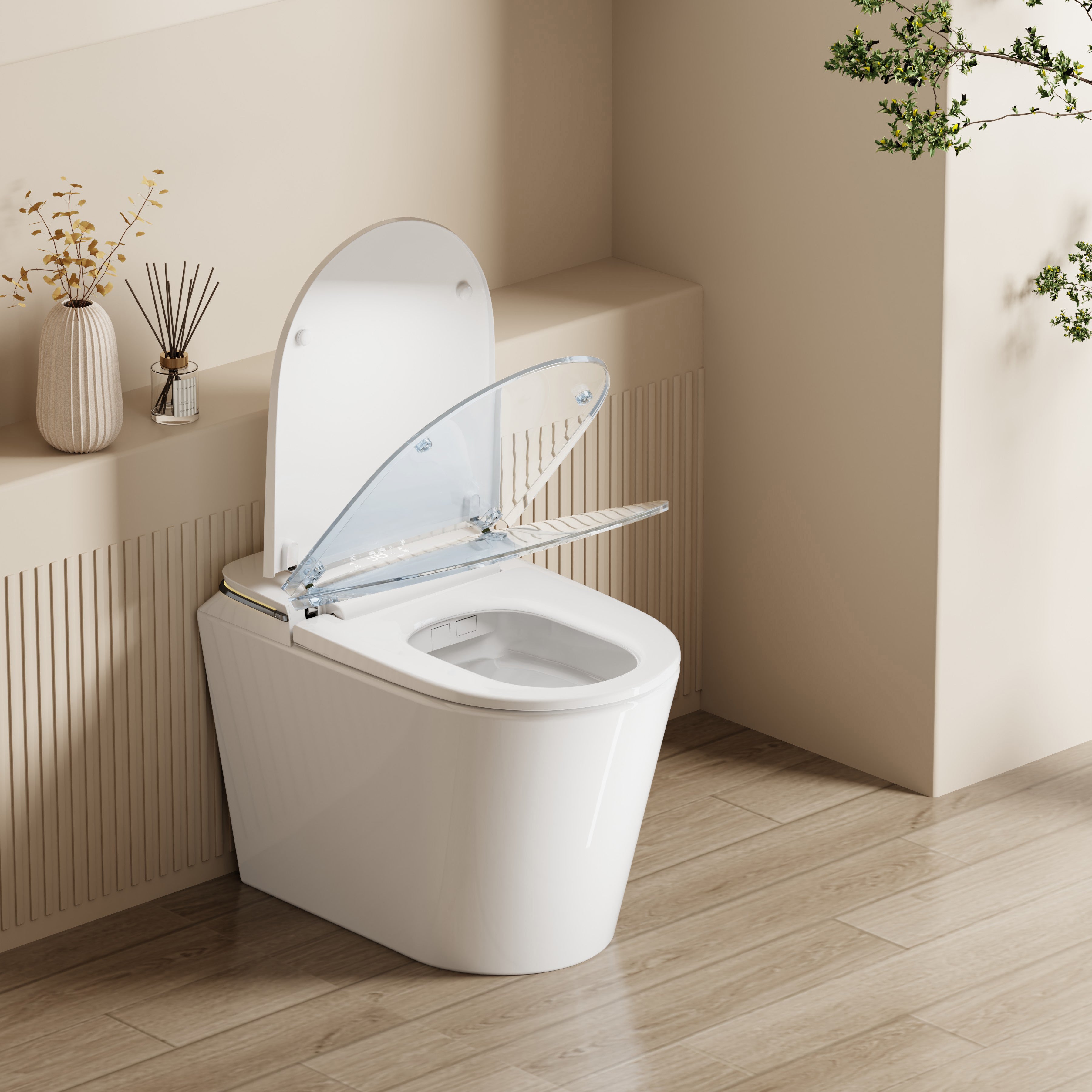

The lid opens automatically when the user approaches and can flush and close after use. -
Complete Bidet Washing System
Supports rear wash, feminine wash, adjustable nozzle position, water pressure and water temperature. -
Warm-Air Drying
-
Built-In Foam-Shield System
Creates a protective foam layer to help reduce splashing, odor and bowl contamination. -
UV Nozzle Sterilization
The washing nozzle supports UV sterilization and automatic self-cleaning for improved hygiene. -
Smart Comfort Functions
Available functions include seasonal temperature adjustment, aromatherapy, ambient lighting, night light, voice control and side-knob operation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | DZOZO |
| Model | S042 |
| Product Type | Fully Smart Toilet |
| Installation Type | Floor-Mounted One-Piece |

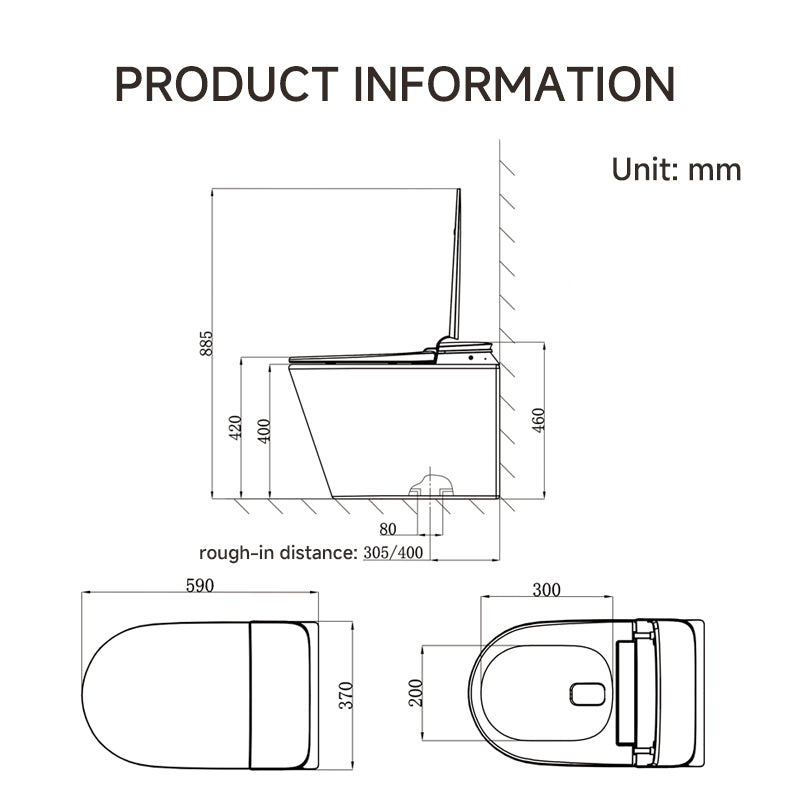

| Product Dimensions | 590 × 370 × 460 mm |
| Height with Lid Open | Approximately 885 mm |
| Rough-In Distance | 305 mm / 400 mm |
| Drainage Type | S-Trap Floor Outlet |
| Drain Outlet Diameter | Approximately 80 mm |
| Standard Voltage | 220V~ |
| Frequency | 50Hz |
| Rated Power | 850 W |
| Maximum Input Power | 1700 W |
| Power Cord Length | Approximately 1.3 m |
| Plug Type | Customizable according to destination market |
| Waterproof Rating | IPX4 |
| Ambient Operating Temperature | 3°C–40°C |
| Inlet Water Temperature | 4°C–35°C |
| Recommended Water Pressure | 0.08–0.75 MPa |
| Nominal Flush Water Consumption | 5.0 L |
| Flushing System | Built-In Tank with Double-Pump Boosted Siphonic Flush |
| Water Heating Type | Instant Heating |
| Washing Flow | Adjustable |
| Nozzle Position | Multi-Level Adjustable |
| Seat Temperature | Multi-Level Adjustable |
| Drying Temperature | Multi-Level Adjustable |
| Control Methods | Remote Control, Side Knob, Foot Sensor and Optional Voice Control |
| Net Weight | Approximately 38 kg |
| Gross Weight | Approximately 43 kg |
| Product Color | White as standard; custom colors available |
| Certification | CE available; other certifications depend on configuration and market |
Featured Function Configuration
| Function | Description |
|---|---|
| Rear Wash | Adjustable water temperature, pressure and nozzle position |
| Feminine Wash | Gentle washing program with adjustable settings |
| Instant Water Heating | Provides warm water without long preheating |
| Heated Seat | Multi-level seat-temperature adjustment |
| Warm-Air Drying | High-speed adjustable warm-air drying |
| Automatic Flushing | Flushes automatically after the user leaves |
| Automatic Lid Opening | Opens the lid when the user approaches |
| Foot-Sensor Operation | Supports touch-free lid, seat and flushing control |
| Double-Pump Booster | Improves flushing stability and driving force |
| Built-In Water Tank | Supports reliable flushing under suitable inlet conditions |
| Foam Shield | Helps reduce splashing, odor and bowl contamination |
| UV Sterilization | Supports nozzle sterilization and self-cleaning |
| Seasonal Temperature Control | Automatically adapts comfort settings to seasonal conditions |
| Aromatherapy | Periodically releases fragrance to improve the bathroom environment |
| Ambient Light | Decorative lighting for a modern appearance |
| Night Light | Provides soft illumination during nighttime use |
| Voice Control | Optional hands-free function control |
| Side Control Knob | Provides convenient manual operation |
Available Configurations
- Standard white ceramic body
- Custom exterior colors
- Different smart-function combinations
- Remote-control or voice-control configurations
- Foam-shield and aromatherapy options
- Destination-specific voltage and frequency
- EU, US, UK, AU and other plug types
- Customer logo and private-label branding
- Customized manuals, labels and packaging
Electrical configurations other than the standard 220V~/50Hz version are subject to engineering confirmation before production.
MOQ, Sample and Production Lead Time
| Item | Details |
|---|---|
| MOQ | 1 unit |
| Sample Lead Time | Approximately 10 days |
| Mass Production Lead Time | Approximately 30 days |
| Lead-Time Note | Final schedule depends on quantity and customization requirements |
OEM/ODM Customization
DZOZO provides OEM and ODM support for distributors, bathroom brands, importers and project contractors.
Available customization includes:
- Smart-function configuration
- Product color
- Voltage and frequency
- Power plug
- Brand logo
- Remote-control design
- Product labels
- User manual
- Inner packaging
- Outer carton design
Final specifications should be confirmed before sampling or mass production.
Packaging
Each S042 smart toilet is packed using a reinforced kraft carton with wooden-frame protection to reduce transportation damage during international shipping.
Customized cartons, printed logos, labels, manuals and other packaging materials are available for OEM/ODM orders.
Certification
CE certification is available for applicable S042 configurations. Additional compliance requirements can be evaluated according to the destination market and final electrical configuration.
Certifications vary by model, voltage, components and target market. Please confirm the required certification before ordering.
Warranty and Spare Parts Support
The warranty period is confirmed according to the final order agreement and product configuration.
DZOZO provides:
- Remote technical support
- Installation guidance
- Troubleshooting assistance
- Replacement electronic modules
- Remote controls
- Washing nozzles
- Water filters
- Pumps, valves and other service parts
Installation Note
Before ordering, please confirm:
- 305 mm or 400 mm rough-in distance
- Water-supply pressure
- Drainage position
- Destination voltage and frequency
- Required plug type
- Bathroom installation space
- Local certification requirements
Installation should be completed by a qualified installer according to the official S042 installation manual.
