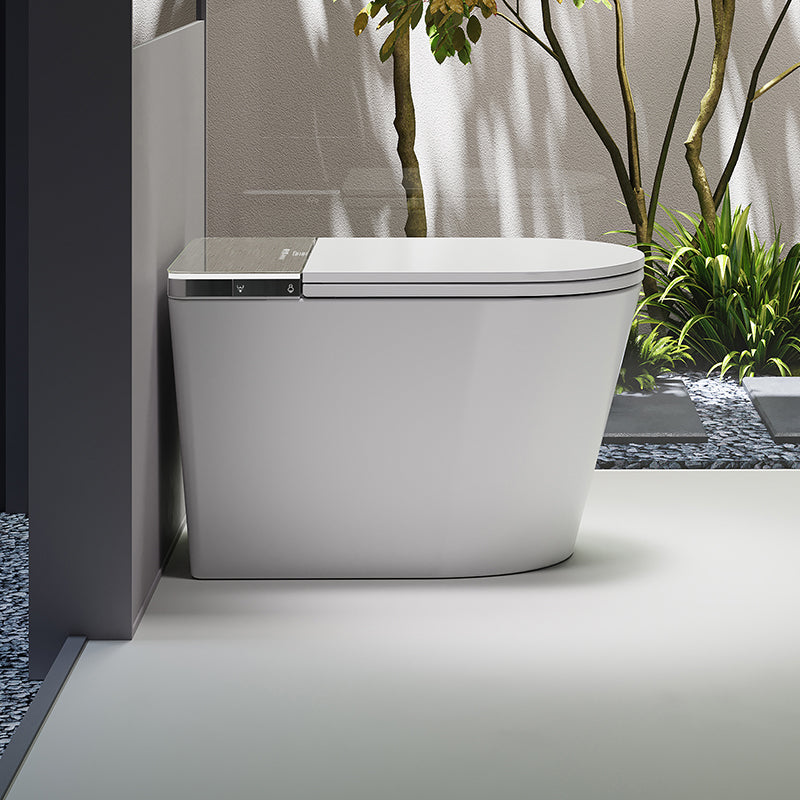

DZOZO S016 Fully Smart Bidet Toilet with Auto Flush and Warm Air Drying | OEM/ODM
One-Line Product Positioning
A fully integrated smart bidet toilet combining instant warm-water washing, warm-air drying, heated seating and touch-free operation for premium residential and commercial bathroom projects.
Product Overview
The DZOZO S016 is a floor-mounted, one-piece fully smart toilet developed for customers who require complete bidet washing, drying and intelligent control functions in a clean, contemporary design.
Its core functions include rear washing, front washing, adjustable nozzle position, adjustable water pressure, instant water heating, a four-level heated seat, warm-air drying and automatic siphonic flushing.
Depending on the selected configuration, the S016 can also support automatic lid opening, foot sensor control, foam shield, automatic deodorization, air freshening, UV nozzle sterilization and offline voice control.
The S016 is suitable for bathroom brands, importers, distributors, property developers, hotels and OEM/ODM smart bathroom projects.
8 Key Features
1. Instant Warm-Water Bidet Washing
The instant heating system supplies warm water without relying on a conventional storage tank, helping provide a more consistent and hygienic washing experience.
2. Rear and Front Washing
Independent rear-wash and front-wash modes provide personalized daily cleaning. Oscillating washing can improve washing coverage and comfort.
3. Adjustable Nozzle and Water Pressure
The nozzle offers five adjustable positions, while the washing pressure can be adjusted across three levels.
4. Warm-Air Drying
The integrated warm-air dryer reduces dependence on toilet paper and offers four selectable temperature levels.

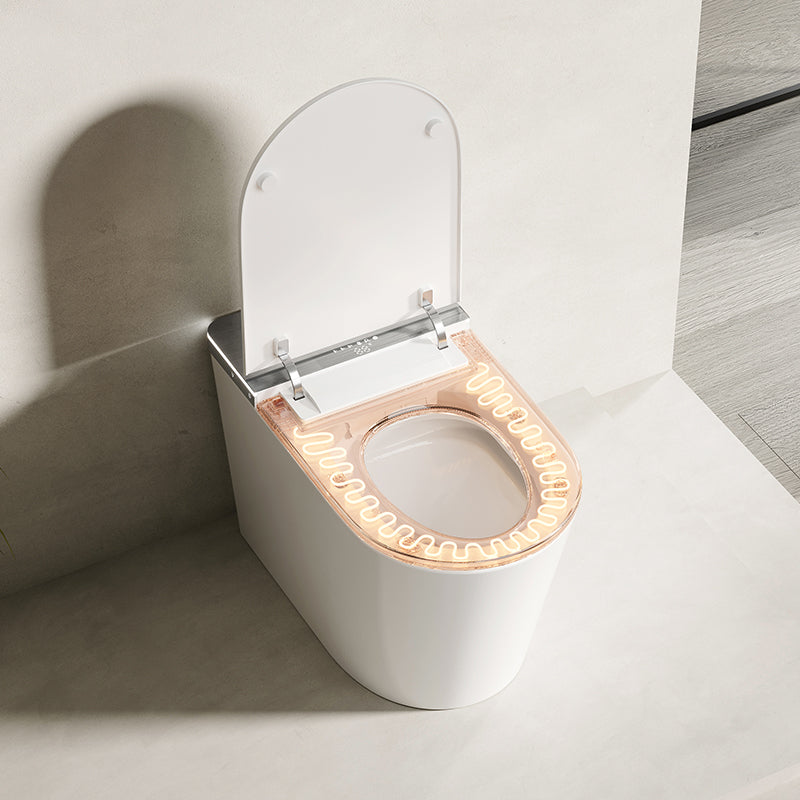

5. Four-Level Heated Seat
The seat temperature can be set to Off, Low, Medium or High for comfortable use in different seasons and climates.
6. Automatic Siphonic Flushing
The S016 can flush automatically after the user leaves the seat. Foot sensor and remote-control flushing are also supported according to the finalized configuration.
7. Self-Cleaning Nozzle
The washing wand includes an automatic self-cleaning function. UV sterilization can be added as an optional configuration.
8. Intelligent and Customizable Controls

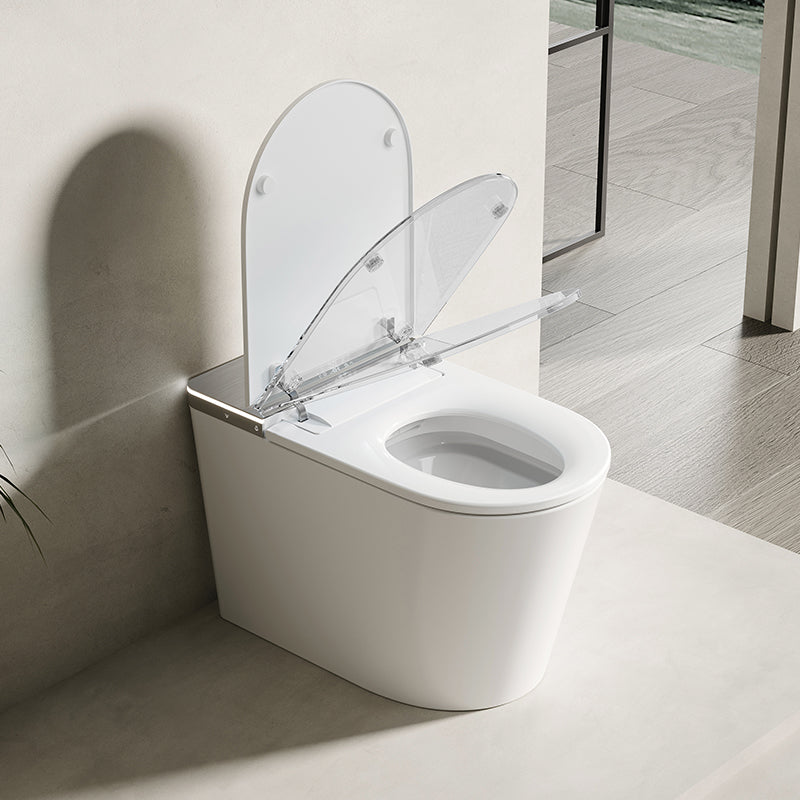

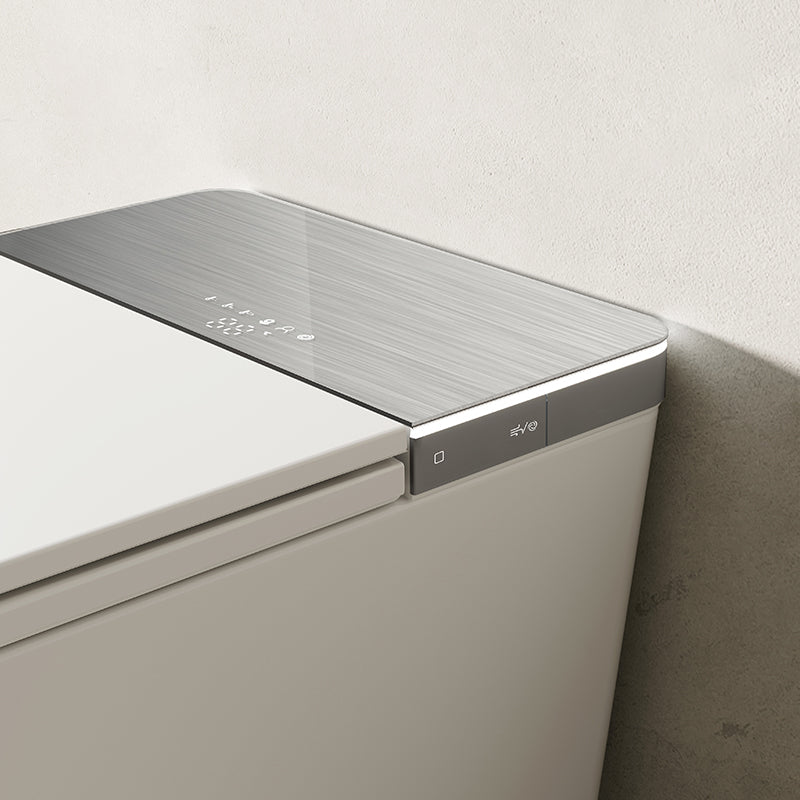

The toilet supports remote control, side-button operation, user memory settings and a digital temperature display. Automatic lid opening, voice control and foam shield are available as optional functions.
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | S016 |
| Product Type | Floor-mounted one-piece fully smart bidet toilet |
| Product Dimensions | 685 × 389.5 × 438 mm |
| Open-Lid Height | Approximately 930 mm |
| Standard Rough-In | 305 mm / 12 inches |
| Optional Rough-In | 250 mm or 400 mm, subject to ceramic configuration confirmation |
| Drainage Method | S-trap |
| Drain Outlet Diameter | ≤80 mm |
| Flushing Method | Siphonic jet flushing |
| Flushing Configuration | Pump flush or solenoid-valve flush |
| Rated Flush Volume | Approximately 5.0 L |
| Rated Voltage | 110V/60Hz or 220V/50Hz |
| Rated Power | Approximately 1150W / 1050W, depending on electrical configuration |
| Waterproof Rating | IPX4 |
| Power Cord Length | Approximately 1.5 m |
| Water Pressure - Pump Version | 0.08-0.75 MPa |
| Water Pressure - Solenoid Version | 0.15-0.75 MPa |
| Water Heating Method | Instant heating |
| Washing Modes | Rear wash, front wash and oscillating wash |
| Nozzle Position | Five-level adjustment |
| Washing Pressure | Three-level adjustment |
| Water Temperature | Off / 33°C / 37°C / 39°C |
| Seat Temperature | Off / 33°C / 37°C / 39°C |
| Seat Heating Power | 50W |
| Warm-Air Temperature | Off / 45°C / 50°C / 55°C |
| Warm-Air Heating Power | Approximately 230W |
| Control Methods | Remote control, side buttons and sensors |
| User Memory | User 1 and User 2 settings |
| Night Light | Available |
| Automatic Flushing | Available |
| No-Power Flush | Supported with backup battery configuration |
| Automatic Lid | Optional |
| Foot Sensor Control | Optional configuration |
| Foam Shield | Optional |
| UV Nozzle Sterilization | Optional |
| Voice Control | Optional |
| Air Freshening | Optional |
| Plug Options | US / EU / UK / AU or customized plug |
| Standard Color | White |
| Custom Colors | Available subject to order quantity and confirmation |
| Plug Type | US / EU / UK / AU plug available; customized for the destination market. |
Washing and Comfort Settings
| Function | Adjustment |
| Rear Washing | Available |
| Front Washing | Available |
| Oscillating Washing | Available |
| Massage Washing | Configuration-dependent |
| Child Washing Mode | Available according to configuration |
| Nozzle Position | Five levels |
| Water Pressure | Three levels |
| Water Temperature | Four settings, including Off |
| Seat Temperature | Four settings, including Off |
| Warm-Air Temperature | Four settings, including Off |
| User Memory | Two user profiles |
| Automatic Temperature Mode | Available |
| Wand Self-Cleaning | Available |
| UV Sterilization | Optional |
Optional Functions
The S016 can be configured with additional functions according to the target market and project requirements:
-
Automatic lid opening and closing
-
Automatic seat opening
-
Foot sensor lid, seat and flushing control
-
Foam shield
-
Automatic deodorization
-
Air freshening or aromatherapy module
-
UV nozzle sterilization
-
Offline voice control
-
Night and ambient lighting
-
User memory settings
-
Automatic temperature adjustment
-
Power-saving mode
-
Pump-flush or solenoid-valve system
-
Backup battery flushing
All optional functions must be confirmed before quotation and production.
OEM/ODM Customization
Available OEM/ODM services include:
-
Function and control-system configuration
-
Pump or solenoid flushing system
-
110V or 220V electrical configuration
-
US, EU, UK, AU or customized plug
-
250 mm, 305 mm or 400 mm rough-in configuration
-
Product logo and brand name
-
Custom color and surface finish
-
Remote-control design
-
Voice command language
-
Customized instruction manual
-
Rating label and certification label
-
Retail or wholesale packaging
-
Carton artwork and shipping marks
-
Accessory configuration
-
Spare-parts package
Final dimensions, functions and electrical specifications must be confirmed on the approved order sheet.
Certification
CE compliance support is available according to the target market, electrical system and finalized product configuration.
Additional certification, testing or technical documentation can be discussed for OEM/ODM projects.
MOQ and Lead Time
| Item | Details |
| Minimum Order Quantity | 1 piece |
| Sample Lead Time | Approximately 10 days |
| Mass Production Lead Time | Approximately 30 days after order confirmation |
| OEM/ODM Service | Available |
| Functional Customization | Available |
| Logo Customization | Available |
| Color Customization | Available |
| Packaging Customization | Available |
Warranty & Spare Parts Support
- Warranty: Standard 2-year limited warranty; extended terms available by agreement.
- Spare Parts Support: Replacement electronic modules, remote controls, valves, pumps, seats and consumable components are available for after-sales service.
Lead times may vary according to quantity, selected functions, certification requirements and customization complexity.
S016 Fully Smart Bidet Toilet | DZOZO OEM/ODM
dzozo-s016-fully-smart-bidet-toilet-auto-flush
DZOZO S016 fully smart bidet toilet with instant warm-water washing, heated seat, warm-air drying and automatic flushing. OEM/ODM customization, MOQ 1.
S016 smart toilet, fully smart bidet toilet, automatic bidet toilet, smart toilet with warm air dryer, heated seat toilet, automatic flushing toilet, instant heating smart toilet, floor mounted smart toilet, smart WC manufacturer, smart toilet OEM, smart toilet ODM, China smart toilet factory
Packaging
Kraft carton with reinforced wooden frame.
