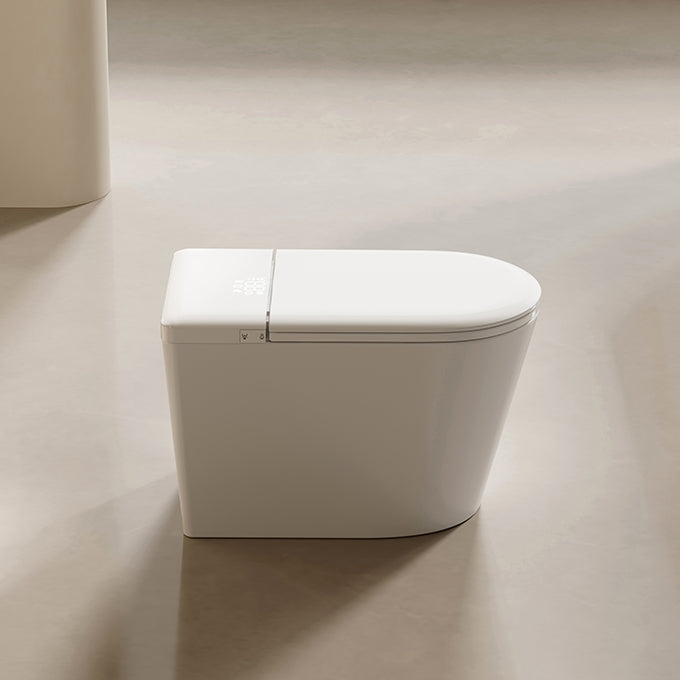

DZOZO S022 Full-Smart Toilet with Foam Shield, Foot Sensor and Automatic Flushing | OEM/ODM
One-Line Product Positioning
The DZOZO S022 is a full-smart toilet combining foam-shield protection, foot-sensor operation, instant warm-water cleansing, heated seating, warm-air drying, and automatic flushing.
Product Overview

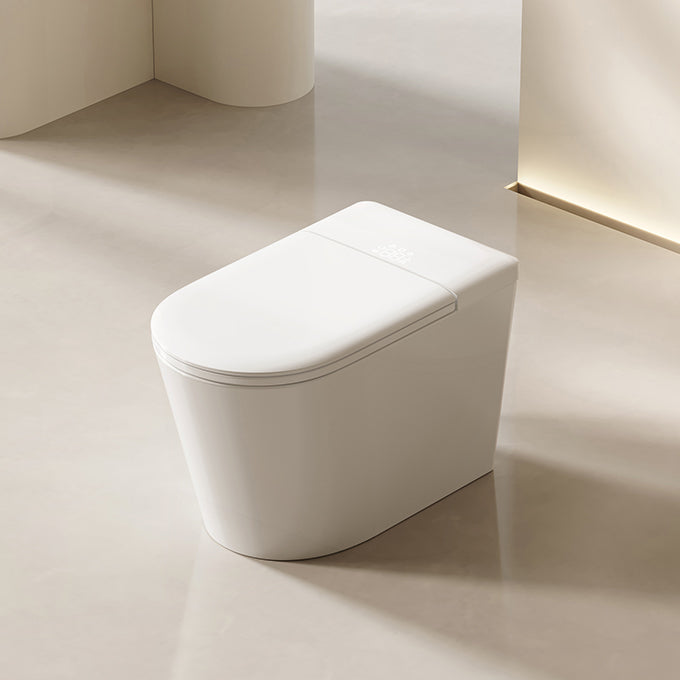

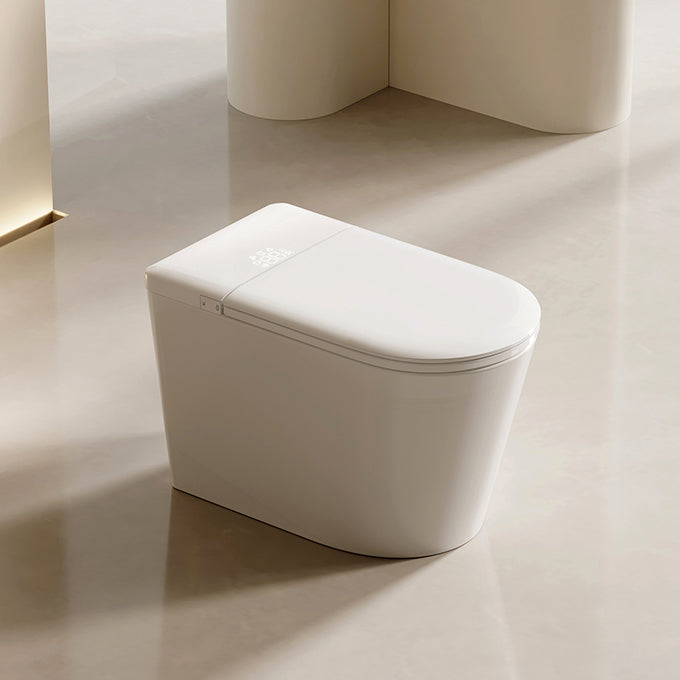

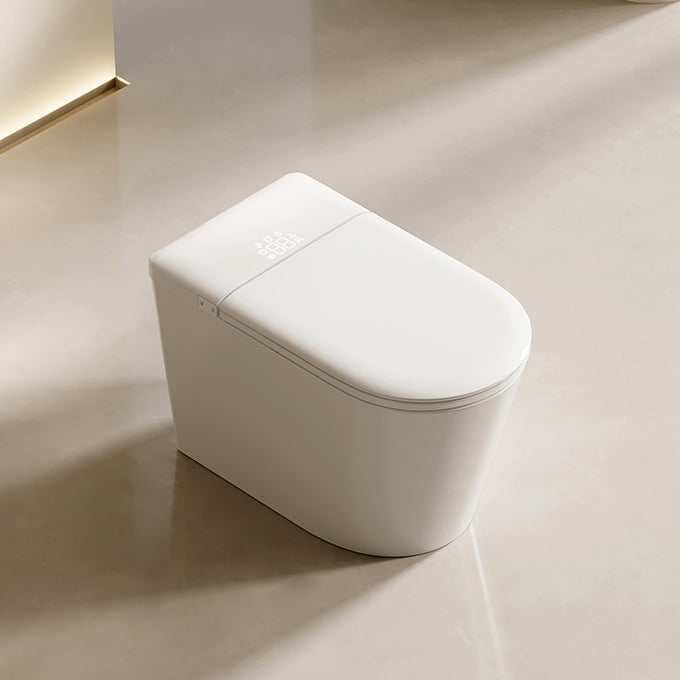

The DZOZO S022 is a floor-mounted full-smart toilet designed for modern homes, hotels, apartments, villas, and sanitary ware projects requiring advanced hygiene and hands-free operation.
Its instant-heating cleansing system provides rear wash, front wash, oscillating wash, menstrual-care washing, child wash, adjustable water pressure, and five-position nozzle control.
The integrated foam-shield system helps reduce splashing and isolate odors. Foot-sensor operation, automatic flushing, optional automatic lid control, and no-power emergency flushing provide a convenient hands-free experience.
The S022 also features a digital display, heated seat, warm-air dryer, night light, ambient light, user memory, and optional voice control. App control can be supplied as an optional OEM configuration but must be confirmed before ordering.
8 Key Features
1. Full-Smart Comfort System

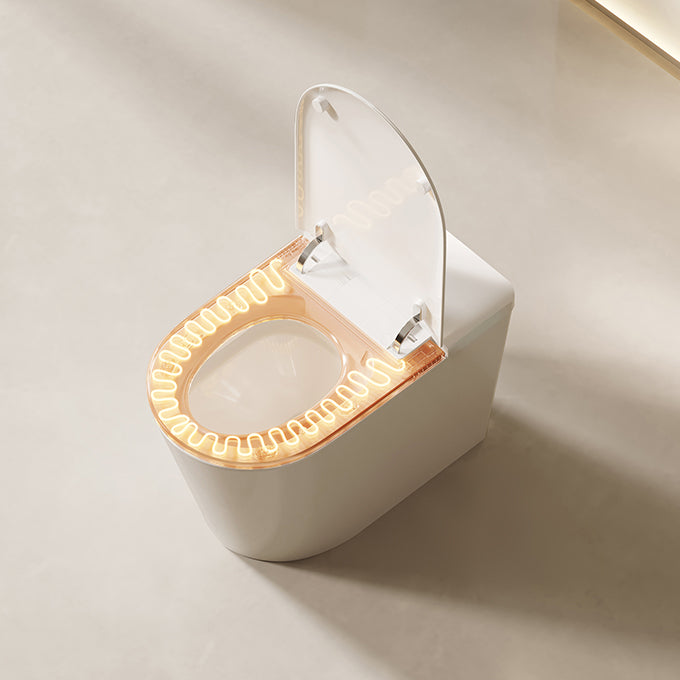

Instant warm-water washing, adjustable heated seating, and warm-air drying provide a complete personal hygiene experience.
2. Foam-Shield Protection
The foam layer helps reduce splashing, isolate unpleasant odors, and prevent stains from adhering to the ceramic bowl.
3. Foot-Sensor Operation
The integrated foot sensor can support flushing, lid opening, seat opening, and hands-free operation according to the selected configuration.
4. Multiple Specialized Washing Modes
Rear wash, front wash, oscillating wash, menstrual-care washing, child wash, massage wash, and one-touch wash-and-dry programs support different users.
5. Automatic Flushing
The toilet automatically flushes after the user leaves the seat, with half-flush and full-flush control available according to usage time.
6. Digital Display and Intelligent Control

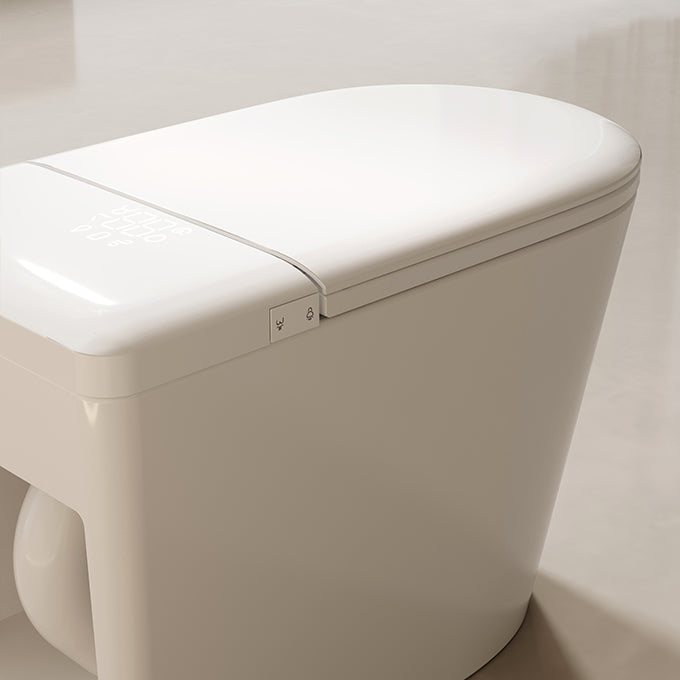

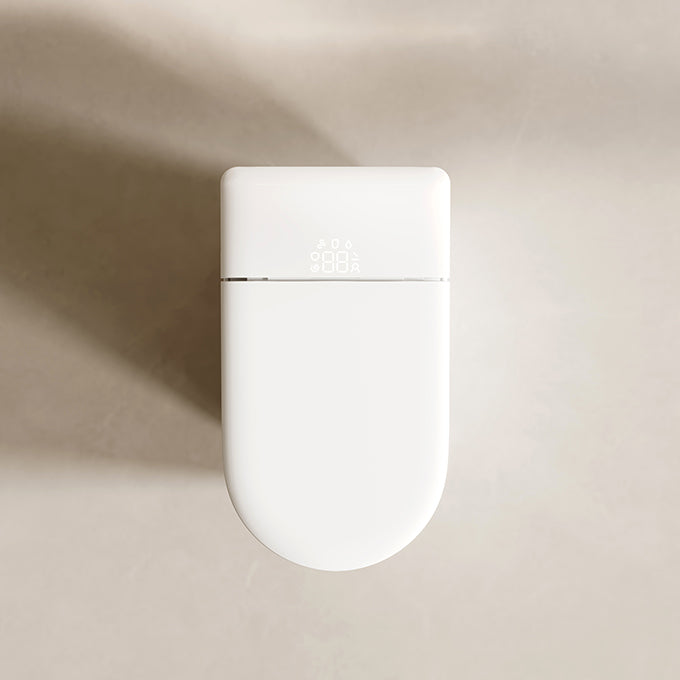

The integrated display shows temperature and operating status. Remote control, side buttons, foot sensing, and optional voice control provide flexible operation.

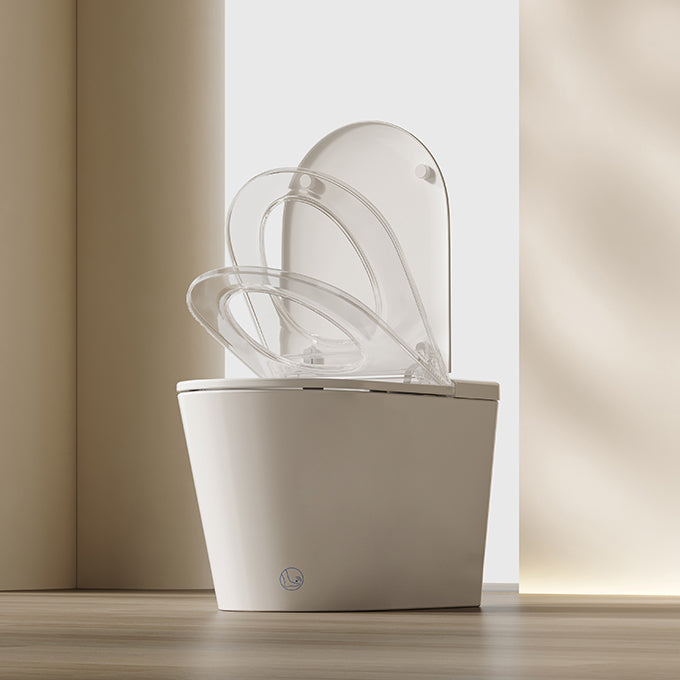

7. Automatic Lid and Seat Options
Human-induction and foot-sensor configurations can automatically open or close the lid and seat for a more hygienic experience.
8. Reliable 5 L Siphonic Flushing
The siphonic jet system provides effective waste removal. A pump-assisted version is available for lower-water-pressure installations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | DZOZO |
| Model | S022 |
| Product Type | Integrated full-smart toilet |
| Installation Type | Floor-mounted |
| Product Dimensions | Approximately 683 × 390 × 421 mm |
| Normal Seat Height | Approximately 400 mm |
| Rear Body Height | Approximately 442 mm |
| Height with Lid Open | Approximately 937 mm |
| Standard Rough-In Distance | 305 mm / 12 inches |
| Additional Rough-In Option | 400 mm |
| Drainage Type | Floor outlet |
| Trap Type | S-trap |
| Flushing Method | Siphonic jet flushing |
| Flush Volume | Approximately 5.0 L |
| Outlet Diameter | Up to approximately 80 mm |
| Rated Voltage | 110V/60Hz or 220V/50Hz |
| Rated Power | Approximately 1150W at 110V / 1100W at 220V |
| Power Cord Length | Approximately 1.5 m |
| Plug Type | Customized according to the destination market |
| Waterproof Rating | IPX4 |
| Pump Version Water Pressure | Approximately 0.08–0.75 MPa |
| Solenoid Valve Version Water Pressure | Approximately 0.15–0.75 MPa |
| Water Heating System | Instant heating |
| Water Temperature | 4 settings: ambient/off, approximately 33°C, 37°C, and 39°C |
| Seat Temperature | 4 settings: ambient/off, approximately 33°C, 37°C, and 39°C |
| Drying Temperature | 4 settings: ambient/off, approximately 45°C, 50°C, and 55°C |
| Water Pressure Adjustment | 3 levels |
| Nozzle Position Adjustment | 5 positions |
| Seat Heating Power | Approximately 50W |
| Drying Heater Power | Approximately 230W |
| Control Methods | Remote control, side buttons, foot sensor, and optional voice or app control |
| Main Material | Glazed ceramic body with integrated electronic smart-seat system |
| Standard Color | White |
| Optional Colors | Custom colors subject to order and production confirmation |
| Water and Energy Efficiency | Level 2 according to the product manual |
| Certification Support | CE certification can be arranged according to the confirmed configuration and destination market |
Specifications and available functions may vary according to voltage, market, selected components, and OEM/ODM configuration. Final specifications must be confirmed before production.
Washing and Comfort Functions
-
Rear wash
-
Front wash
-
Oscillating wash
-
Massage wash
-
Menstrual-care washing
-
Child-wash mode
-
One-touch washing and drying
-
Instant warm-water heating
-
Three-level water-pressure adjustment
-
Five-position nozzle adjustment
-
Four-level water-temperature control
-
Heated seat
-
Four-level seat-temperature control
-
Warm-air drying
-
Four-level drying-temperature control
-
Automatic temperature mode
-
User memory settings
-
ECO energy-saving mode
-
Remote-control operation
-
Side-button operation
Hygiene Functions
-
Foam-shield splash protection
-
Automatic nozzle self-cleaning
-
Optional UV nozzle sterilization
-
Antibacterial seat and nozzle
-
Bowl pre-wetting
-
Automatic flushing after use
-
Anti-backflow protection
-
Anti-siphon protection
-
Built-in water filtration
-
Automatic deodorization
-
Optional replaceable air freshener
-

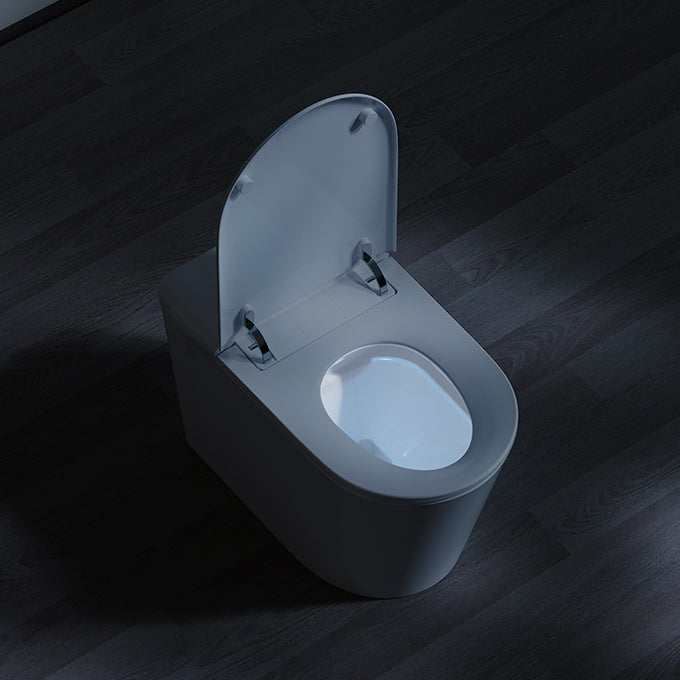

Night light
-
Ambient light
Intelligent Functions
-
Digital temperature display
-
Remote control
-
Integrated side buttons
-
Foot-sensor operation
-
Automatic flushing
-
Automatic bowl pre-wetting
-
Optional automatic lid opening
-
Optional automatic seat opening
-
Optional human-induction control
-
Optional voice-command operation
-
Optional app control
-
User memory settings
-
Automatic temperature adjustment
-
No-power emergency flushing
-
Error-code display
Safety Features
-
Seat occupancy sensor
-
Grounding protection
-
Thermal fuse protection
-
Thermostat protection
-
Water-temperature sensor
-
Air-temperature sensor
-
Seat-temperature sensor
-
Over-temperature protection
-
Low-temperature burn protection
-
Automatic pressure-relief device
-
IPX4 water-resistant construction
-
Electrical leakage protection plug
-
Automatic safety shutdown
Available Functions and Options
The S022 can be configured according to different market, project, and price requirements.
-
Rear wash and front wash
-
Oscillating and massage wash
-
Menstrual-care washing
-
Child-wash mode
-
One-touch washing and drying
-
Heated seat
-
Warm-air drying
-
Digital temperature display
-
Remote control
-
Side-button control
-
Foot-sensor operation
-
Automatic flushing
-
Bowl pre-wetting
-
Foam-shield system
-
UV nozzle sterilization
-
Automatic deodorization
-
Replaceable air freshener
-
Automatic lid opening
-
Automatic seat opening
-
Human-induction control
-
Night light
-
Ambient light
-
User memory
-
ECO energy-saving mode
-
Automatic temperature adjustment
-
Voice-control system
-
App-control system
-
Pump-assisted flushing for low water pressure
-
Emergency flushing during a power outage
Voice control, app control, UV sterilization, automatic lid operation, and other optional functions must be confirmed in the final order specification.
OEM/ODM Customization
DZOZO supports OEM and ODM customization for importers, distributors, sanitary ware brands, contractors, hotels, and real estate projects.
Available customization includes:
-
Product function combinations
-
Voice-control language and commands
-
App-control configuration
-
Rated voltage and frequency
-
Regional plug type
-
Pump-assisted or solenoid-valve water system
-
305 mm or 400 mm rough-in
-
Remote-control design
-
Side-button layout
-
Foot-sensor configuration
-
Ceramic color
-
Decorative trim color
-
Customer logo
-
Product label and rating label
-
Customized model number
-
User manual and installation guide
-
Gift box and outer-carton design
-
Barcode and shipping marks
-
Customized accessories
-
Export packaging reinforcement
Order Information
| Item | Details |
| MOQ | 1 unit |
| Sample Availability | Available |
| Sample Lead Time | Approximately 10 days |
| Mass Production Lead Time | Approximately 30 days after order confirmation |
| Certification | CE certification support available |
| OEM/ODM | Available |
| Standard Packaging | Kraft carton with reinforced wooden frame |
| Customized Packaging | Available |
| Warranty | Subject to the confirmed order agreement and destination market |
| Spare Parts Support | Spare-parts supply and after-sales technical support available |
| Shipping | Sea, air, rail, or express shipment according to order requirements |
| Price | Request a quotation |
Download S022 Manual
Download Manual (PDF):
Suggested button text:
Download S022 Manual (PDF)
Request a Quote or Sample
Please submit your requirements through the inquiry form. Our sales team will recommend the appropriate S022 configuration according to your market, installation conditions, and order quantity.
Inquiry Form Fields
-
Full Name
-
Company Name
-
Business Email
-
Phone or WhatsApp
-
Country/Region
-
Interested Model
-
Estimated Order Quantity
-
Required Voltage
-
Required Plug Type
-
Rough-In Distance
-
Water Pressure Conditions
-
Required Functions
-
Voice-Control Requirements
-
App-Control Requirements
-
Certification Requirements
-
OEM/ODM Requirements
-
Logo Customization
-
Packaging Requirements
-
Target Delivery Date
-
Additional Message
-
File Upload
Call-to-Action Buttons
-
Get an OEM Quote
-
Request a Sample
-
Request Product Catalog
-
Download S022 Manual (PDF)
Related Models / Compare Models
| Model | Product Positioning | Recommended For |
| S021 | Semi-smart toilet with heated seat and foam shield | Projects requiring simplified intelligent functions |
| S022 | Full-smart toilet with foam shield and foot sensor | Residential, hotel, and branded OEM/ODM projects |
| S023 | Compact smart toilet with advanced remote control | Apartments and space-limited bathrooms |
| S024 | Compact smart toilet with UV sterilization | Projects prioritizing compact size and nozzle hygiene |
| S027 | Premium multifunction smart toilet | Projects requiring aromatherapy and expanded comfort functions |
Price Display and Structured Data Recommendation
The S022 does not have a fixed retail price because the final price depends on the voltage, plug, rough-in distance, flushing system, selected functions, certification, packaging, and order quantity.
