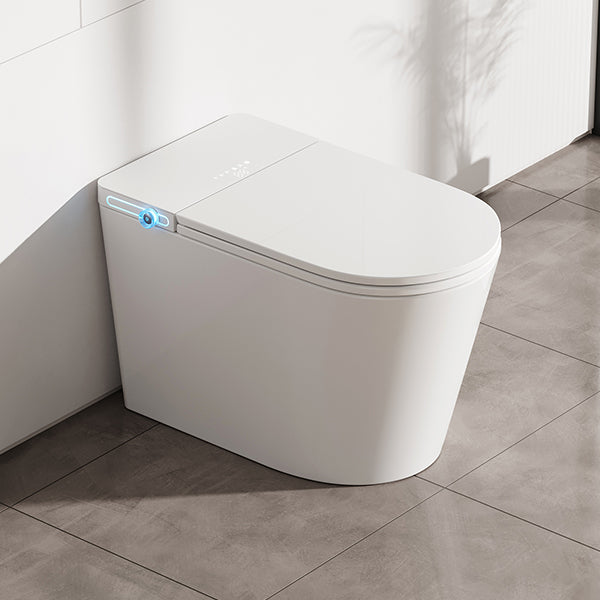

DZOZO S035 Smart Toilet with Foam Shield, Aromatherapy & Intelligent Sensing | OEM/ODM
One-Line Product Positioning
The S035 is a premium integrated smart toilet combining instant warm-water washing, foam-shield protection, aromatherapy air refreshing, intelligent sensing, and optional voice and app control.
Product Overview

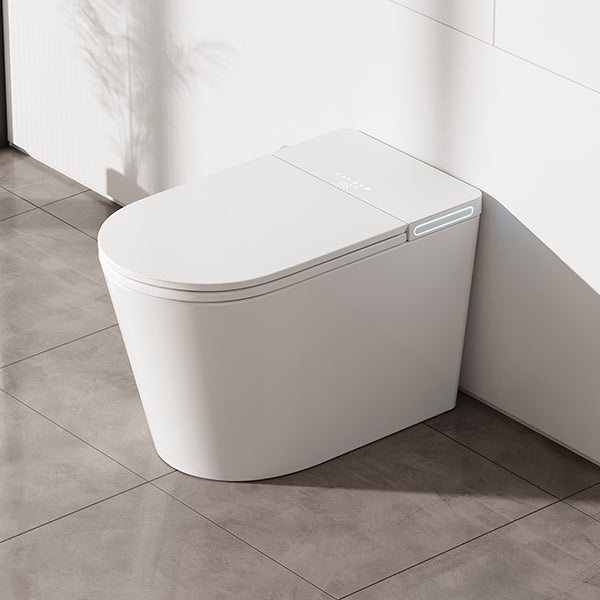

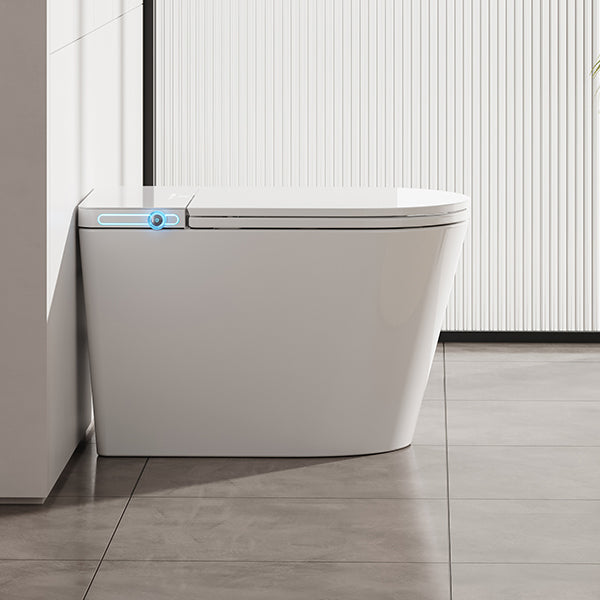

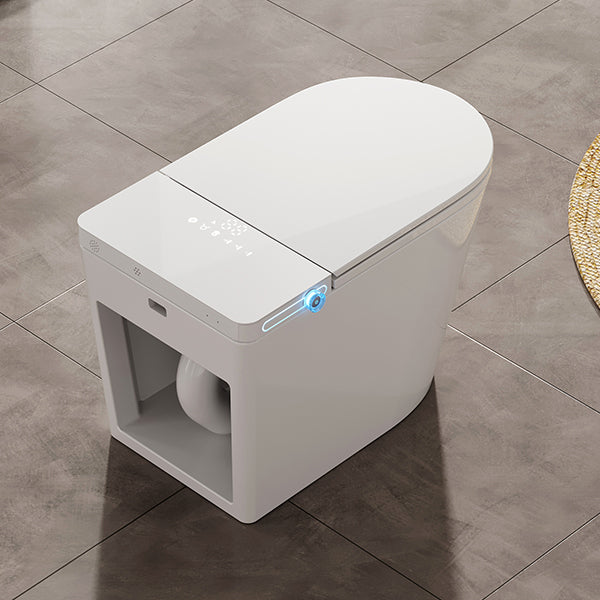

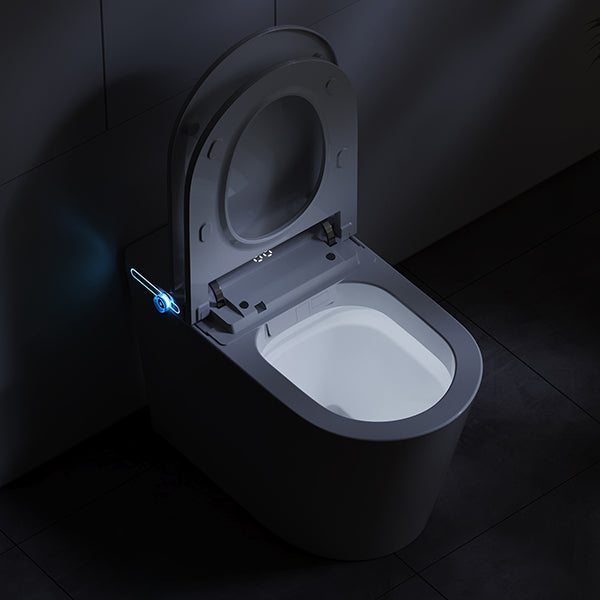

The DZOZO S035 combines advanced hygiene technology with a streamlined, modern one-piece design. It features instant warm-water washing, adjustable nozzle position and water pressure, a heated seat, warm-air drying, automatic deodorization, foam-shield protection, and intelligent flushing.
A built-in digital display shows the water, seat, and drying-air temperature settings. Human sensing, foot-sensor operation, automatic lid opening, ambient lighting, and automatic flushing provide a convenient touch-free experience.
Optional voice control, Bluetooth app control, UV nozzle sterilization, user memory, aromatherapy, and high-speed drying configurations are available for different markets. Voltage, plug type, functions, color, branding, manuals, and packaging can be customized through our OEM/ODM service.
Key Features
Instant Warm-Water Washing
The instant heating system provides warm water on demand without waiting for a storage tank to heat up. Rear wash, front wash, oscillating wash, and child wash modes are available.
Adjustable Washing Experience
Users can select four water-temperature settings, three water-pressure levels, and five nozzle positions for a more personalized washing experience.
Foam-Shield Protection
The foam shield covers the water surface to help reduce splashing, unpleasant odors, and waste adhesion inside the toilet bowl.
Aromatherapy and Air Refreshing
The integrated aromatherapy and air-refreshing system helps maintain a cleaner and more pleasant bathroom environment.
Intelligent Touch-Free Operation
Human sensing, foot-sensor operation, automatic lid opening, and automatic flushing reduce hand contact and improve everyday convenience.
Heated Seat and Warm-Air Drying
Four seat-temperature settings and four drying-temperature settings provide comfortable use throughout the year. High-speed drying is available as an optional configuration.
Optional Voice and App Control
Voice control can operate washing, drying, flushing, lid functions, temperatures, water pressure, lights, and other settings. Bluetooth app control is also available for selected configurations.
Automatic Nozzle Cleaning
The nozzle automatically cleans itself before and after use. Optional UV sterilization and antibacterial seat and nozzle materials provide additional hygiene protection.
Technical Specifications
| Specification | Details |
|---|---|
| Model | S035 |
| Product Type | Integrated floor-standing full smart toilet |

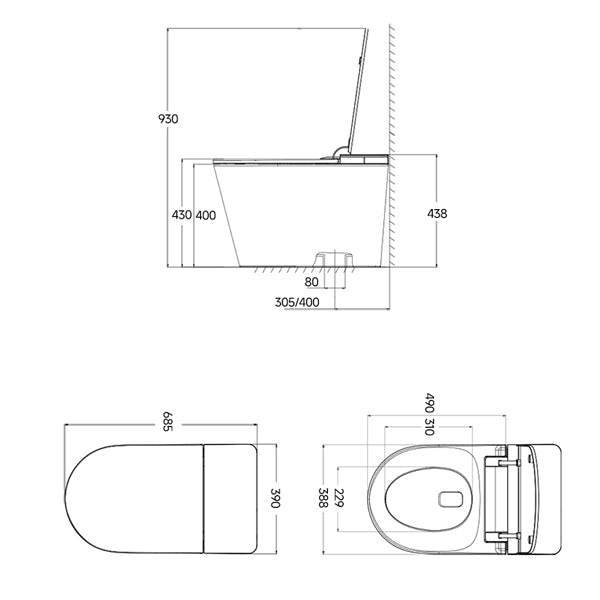

| Overall Dimensions | Approximately 685 × 404 × 438 mm |
| Height with Lid Open | Approximately 930 mm |

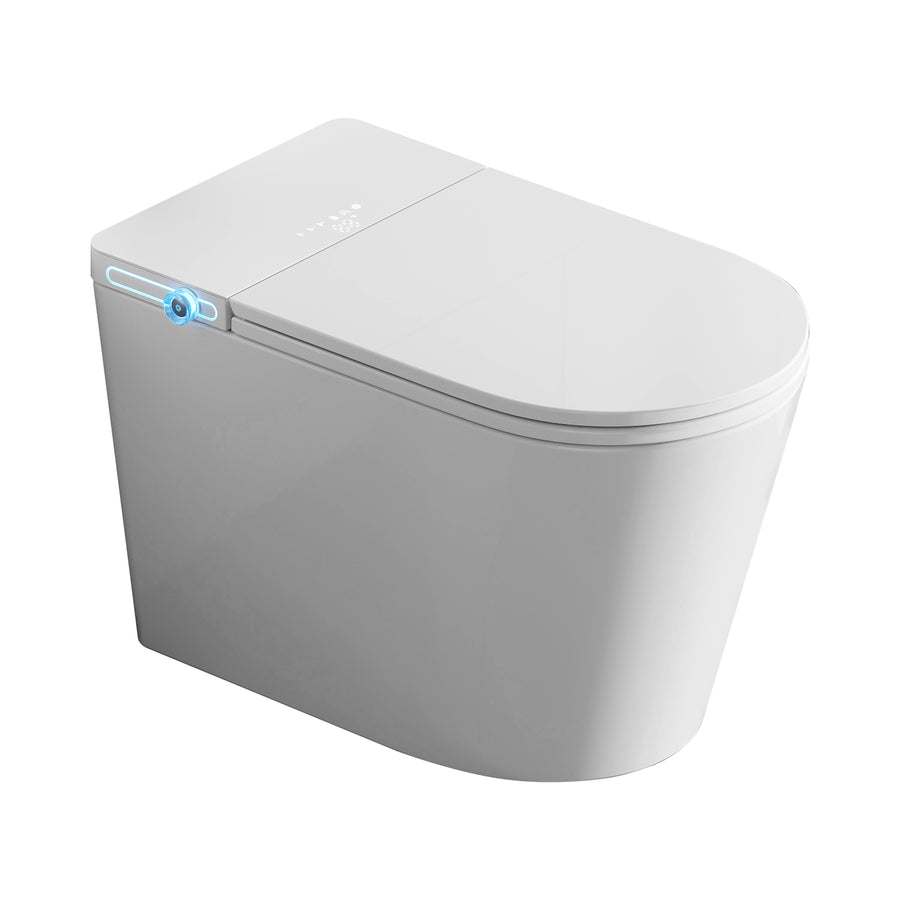

| Standard Color | White |

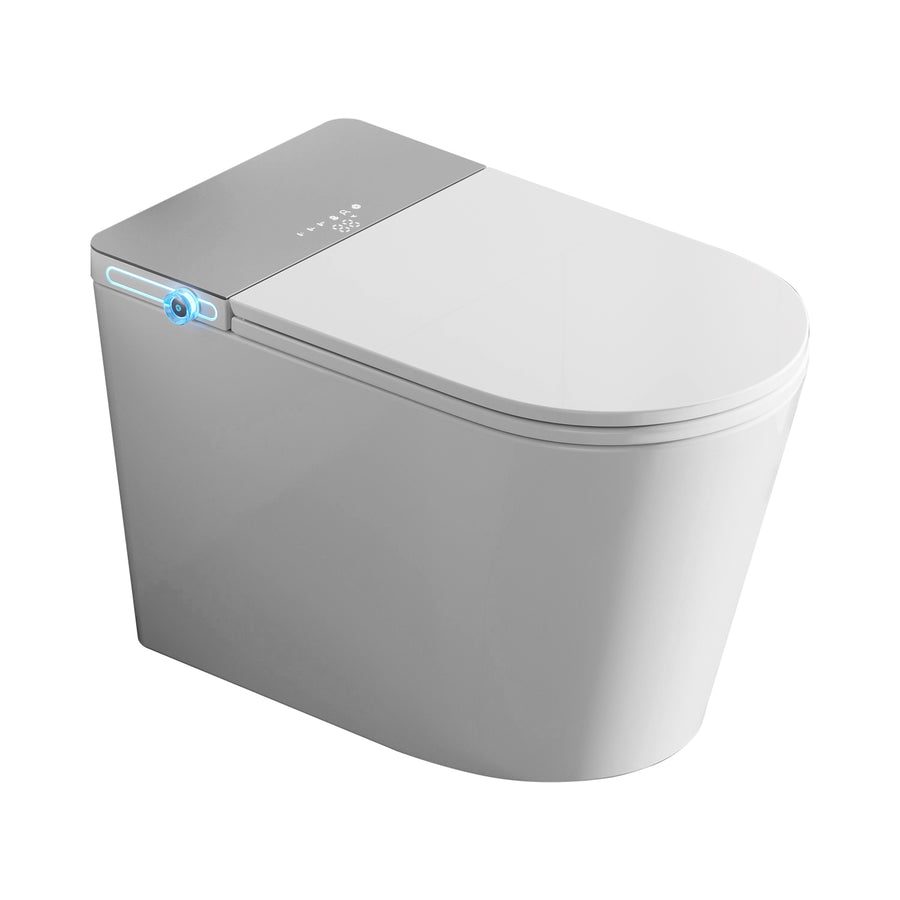

| Optional Colors | Available subject to order quantity |
| Standard Rough-In | 305 mm / 12 inches |
| Additional Rough-In Options | 250 mm and 400 mm are shown in the dimension drawing; confirm before ordering |
| Drainage Type | Floor outlet |
| Trap Type | S-trap |
| Outlet Diameter | ≤80 mm |
| Flushing System | Siphonic jet flushing |
| Flush Volume | Approximately 5.0 L |
| Water Pressure - Pump Version | 0.08-0.75 MPa |
| Water Pressure - Solenoid-Valve Version | 0.15-0.75 MPa |
| Rated Voltage | 110V/60Hz or 220V/50Hz |
| Rated Power | Approximately 1150W / 1050W, depending on voltage configuration |
| Waterproof Rating | IPX4 |
| Power Cord Length | Approximately 1.5 m |
| Plug Type | US / EU / UK / AU / customized plug |
| Water Heating System | Instant heating |
| Water Temperature Settings | Ambient / 33°C / 37°C / 39°C |
| Water Pressure Settings | 3 levels |
| Nozzle Position Settings | 5 levels |
| Washing Modes | Rear wash / front wash / oscillating wash / child wash |
| Nozzle Cleaning | Automatic self-cleaning |
| Massage Washing | Available |
| Heated Seat Power | Approximately 50W |
| Seat Temperature Settings | Ambient / 33°C / 37°C / 39°C |
| Drying Heater Power | Approximately 230W |
| Drying Temperature Settings | Ambient / 45°C / 50°C / 55°C |
| High-Speed Drying | Optional |
| Automatic Deodorization | Available |
| Air Refreshing | Available depending on configuration |
| Aromatherapy | Available depending on configuration |
| Foam Shield | Available depending on configuration |
| Human Presence Sensor | Available depending on configuration |
| Foot-Sensor Flushing | Available depending on configuration |
| Foot-Sensor Lid/Seat Operation | Optional |
| Automatic Lid Opening | Optional |
| Automatic Flushing | Available depending on configuration |
| Bowl Pre-Wetting | Available depending on configuration |
| Ambient Light | Available |
| Night Light | Available |
| Digital Display | Water, seat and drying-air temperature display |
| Voice Control | Optional; language and commands depend on configuration |
| Mobile App Control | Optional Bluetooth control |
| User Memory | User 1 and User 2 settings |
| UV Nozzle Sterilization | Optional |
| Power-Outage Flushing | Supported with backup battery |
| Antibacterial Components | Seat and nozzle, depending on configuration |
| Safety Protection | Thermal fuse, ground protection, thermostat, temperature sensors and over-temperature protection |
| Water and Energy Efficiency | Level 2 according to the instruction manual |
| Available Certification | CE |
Safety and Hygiene Features
- Seat occupancy sensor
- Water-temperature sensor
- Seat-temperature sensor
- Drying-air temperature sensor
- Thermostat protection
- Thermal fuse protection
- Ground protection
- Over-temperature protection
- Anti-backflow protection
- Anti-siphon protection
- Water filtration
- Automatic nozzle cleaning
- Optional UV nozzle sterilization
- Automatic deodorization
- Foam-shield splash and odor protection
- Bowl pre-wetting
- Antibacterial seat and nozzle options
- Low-temperature burn protection
- Power-outage flushing
Available Functions and Options
- Rear wash
- Front wash
- Oscillating wash
- Massage washing
- Child wash
- Adjustable water temperature
- Adjustable water pressure
- Adjustable nozzle position
- Heated seat
- Warm-air drying
- High-speed drying
- Foam-shield system
- Aromatherapy module
- Automatic deodorization
- Air-refreshing system
- Human presence sensing
- Foot-sensor flushing
- Foot-sensor lid and seat operation
- Automatic lid opening and closing
- Automatic flushing after use
- Automatic bowl pre-wetting
- Voice control
- Bluetooth app control
- User memory
- UV nozzle sterilization
- Ambient light
- Night light
- Backup battery flushing
- Pump-assisted or solenoid-valve flushing
OEM/ODM Customization
We support OEM and ODM customization for:
- Product functions and configuration
- Voice-control language and commands
- Mobile app configuration
- Voltage and frequency
- Plug type
- Rough-in size
- Flushing system
- Product color and decorative parts
- Customer logo and product nameplate
- Digital display and control-panel design
- Remote-control design
- Instruction manual and language
- Product labels and barcodes
- Retail and export packaging
- Private-label production
Order Information
| Order Item | Details |
|---|---|
| Minimum Order Quantity | 1 unit |
| Sample Lead Time | Approximately 10 days |
| Mass Production Lead Time | Approximately 30 days |
| Available Certification | CE |
| Packaging | Kraft carton with reinforced wooden frame |
| OEM/ODM | Functions, configuration, branding and packaging |
| Warranty | Subject to order agreement and target market |
| Spare Parts Support | Available |
Replacement parts can include remote controls, control boards, nozzles, water inlet valves, pumps, foam-system components, sensors, drying components, and other service parts.
Request a Quote or Sample
Please provide your target market, required quantity, rough-in size, voltage, plug type, and preferred functions. Our team will recommend the correct S035 configuration and provide an OEM quotation.
