DZOZO S027 Smart Toilet with Aromatherapy, Foam Shield & Full-Auto Operation | OEM/ODM
One-Line Product Positioning
The S027 is a premium integrated smart toilet combining instant warm-water washing, aromatherapy air refreshing, foam-shield protection, intelligent sensing, and full-auto operation.
Product Overview

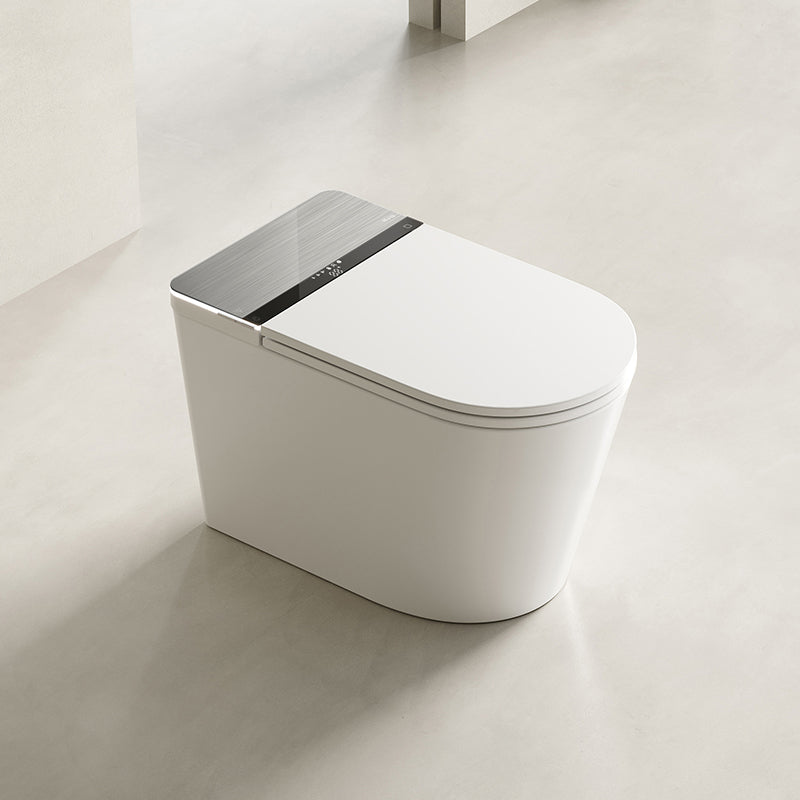

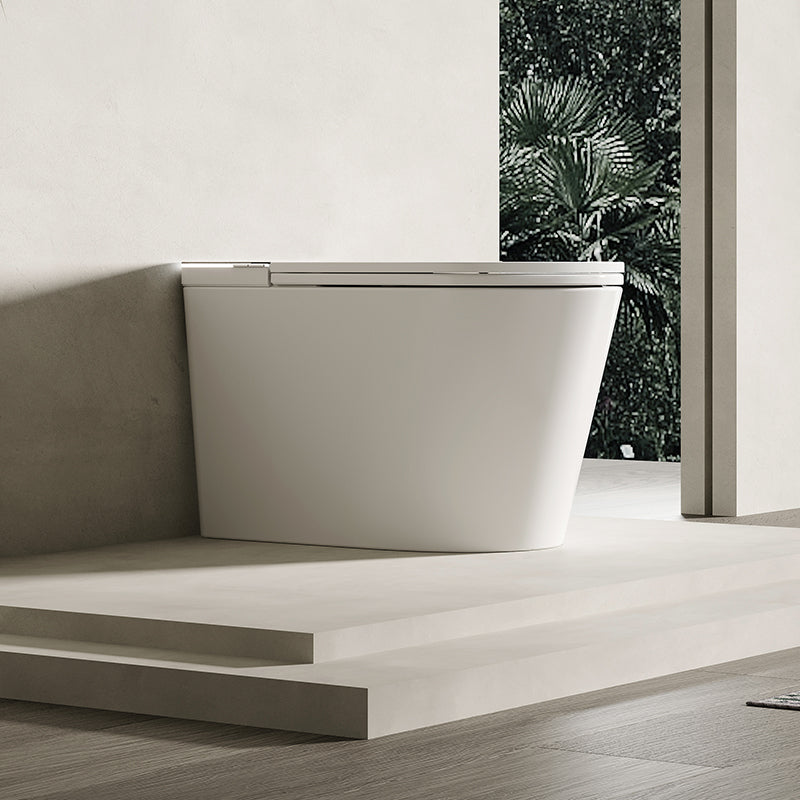

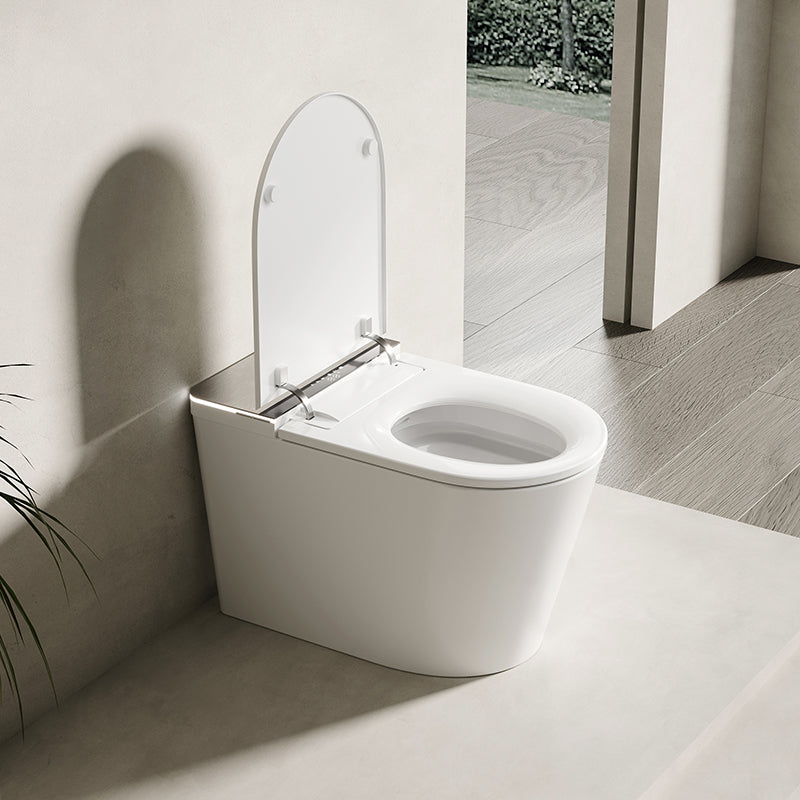

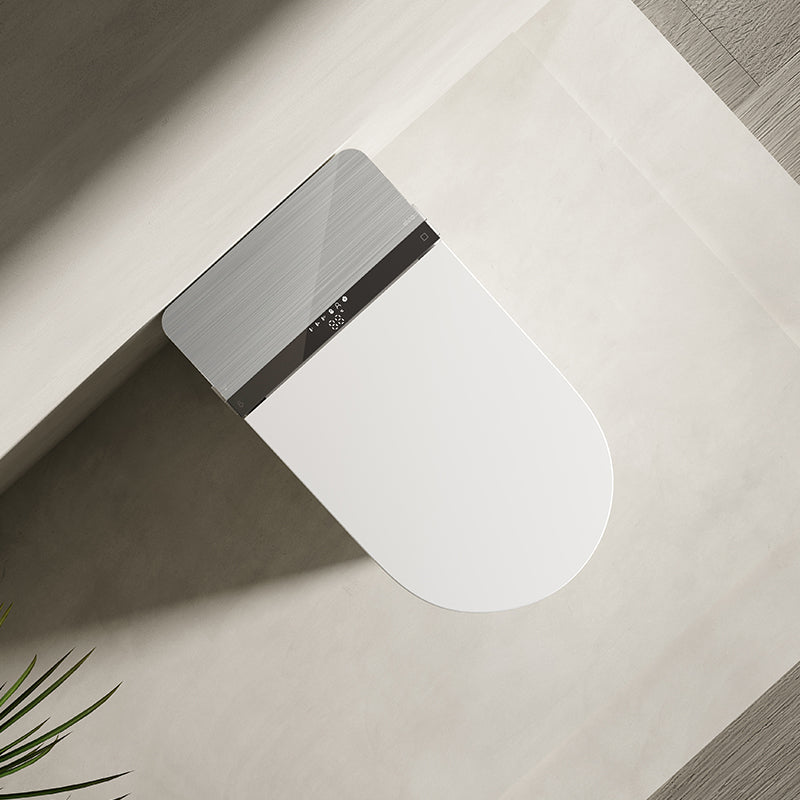

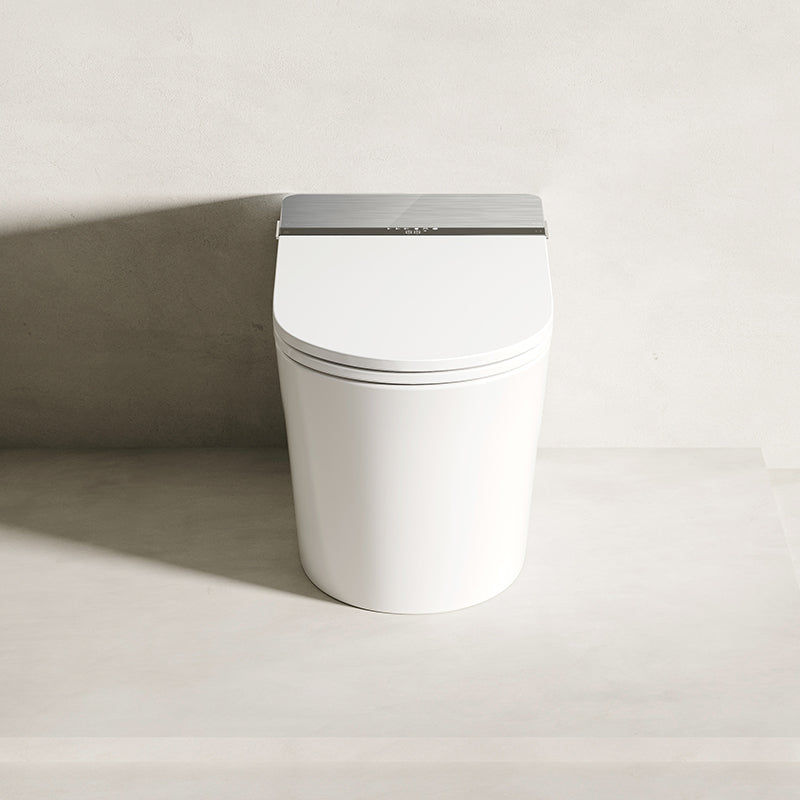

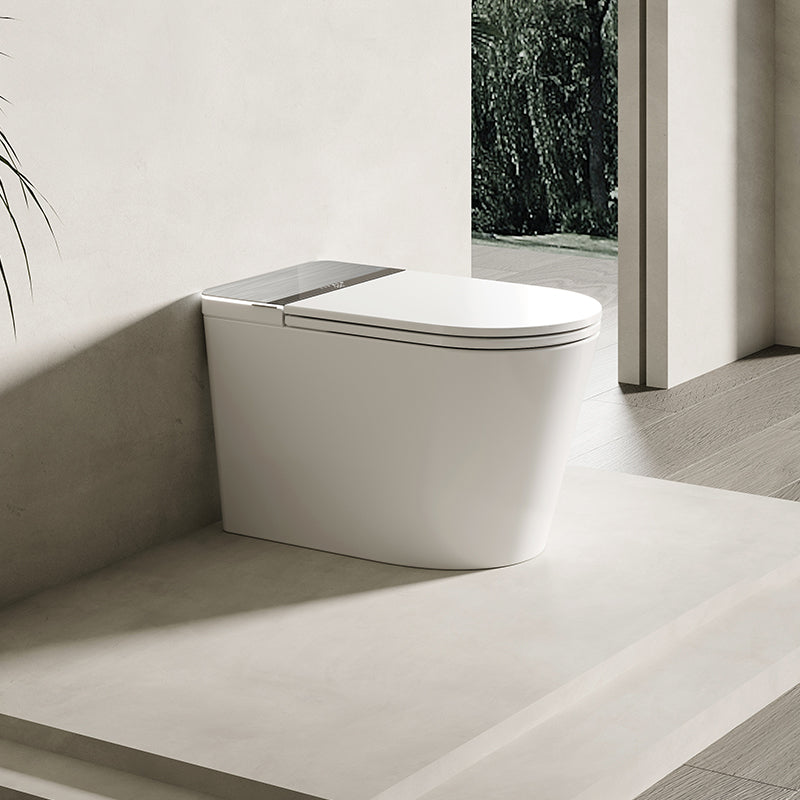

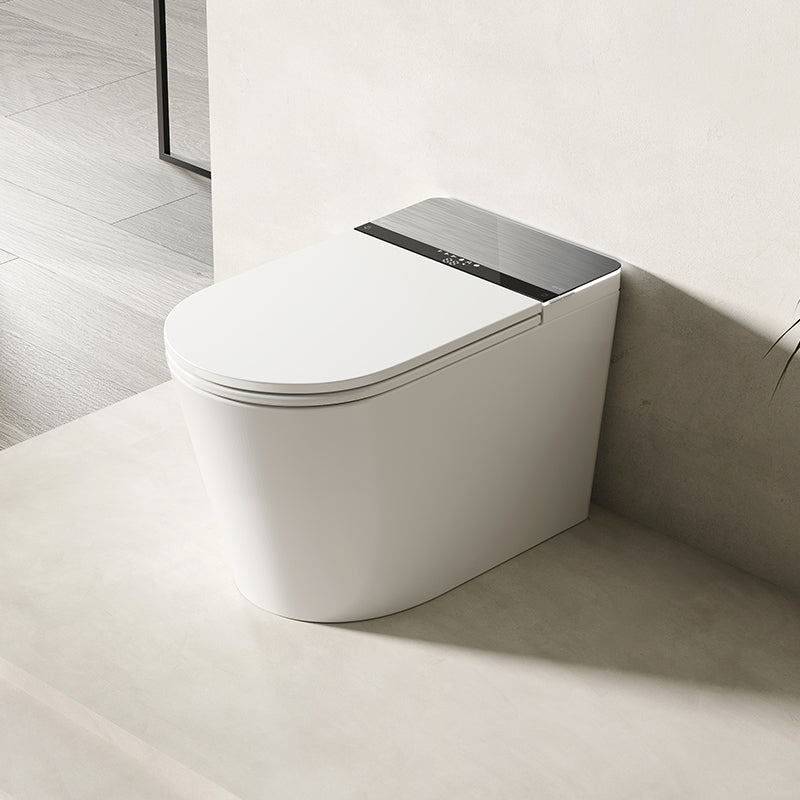

The DZOZO S027 combines a streamlined one-piece design with advanced washing, comfort, and hygiene functions. Its flat-top rear section, digital display, ambient lighting, and concealed components create a clean and modern appearance for residential, hospitality, and commercial bathrooms.
The S027 features instant warm-water washing, adjustable water pressure and nozzle position, a heated seat, warm-air drying, automatic deodorization, aromatherapy air refreshing, foam-shield protection, and automatic flushing.
Optional voice control, human presence sensing, foot-sensor lid operation, automatic lid opening, UV nozzle sterilization, and high-speed drying are available. Voltage, plug type, functions, color, branding, manuals, and packaging can be customized through our OEM/ODM service.
Key Features
Instant Warm-Water Washing
The instant heating system supplies warm water on demand. Rear wash, front wash, oscillating wash, massage wash, and child wash modes are available.
Aromatherapy and Air Refreshing
The integrated aromatherapy outlet and air-refreshing system help create a cleaner and more pleasant bathroom environment.
Foam-Shield Protection
The foam shield covers the water surface to help reduce splashing, unpleasant odors, and waste adhesion inside the toilet bowl.
Full-Auto Touch-Free Operation

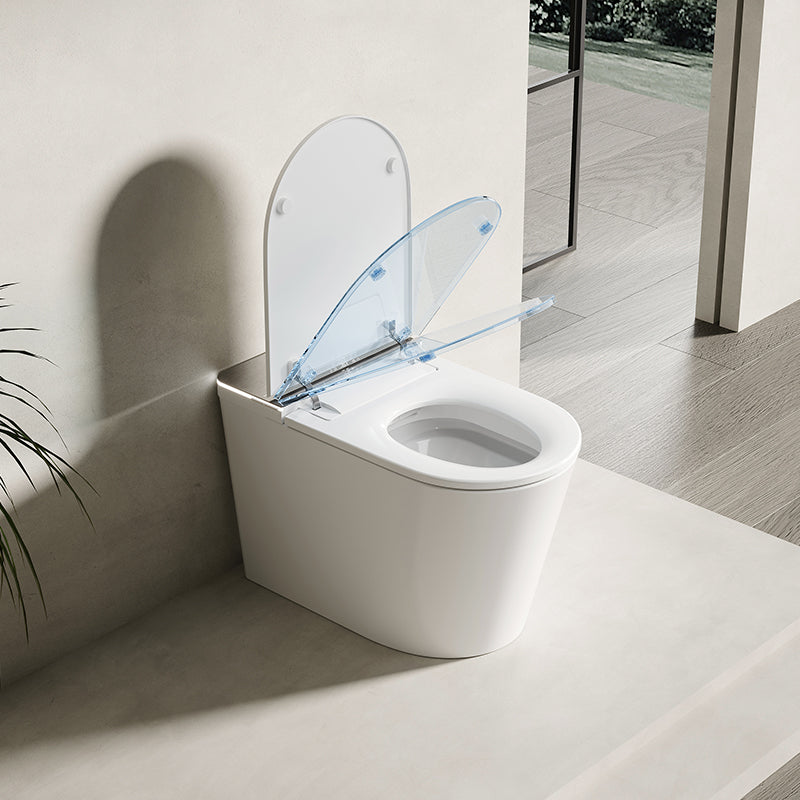

Human presence sensing, foot-sensor operation, automatic lid opening, and automatic flushing provide a convenient hands-free experience.
Personalized Washing Settings
Users can select four water-temperature settings, three water-pressure levels, and five nozzle positions for personalized comfort.
Heated Seat and Warm-Air Drying
Four seat-temperature settings and four drying-temperature settings provide comfortable use throughout the year. High-speed drying is available as an optional configuration.

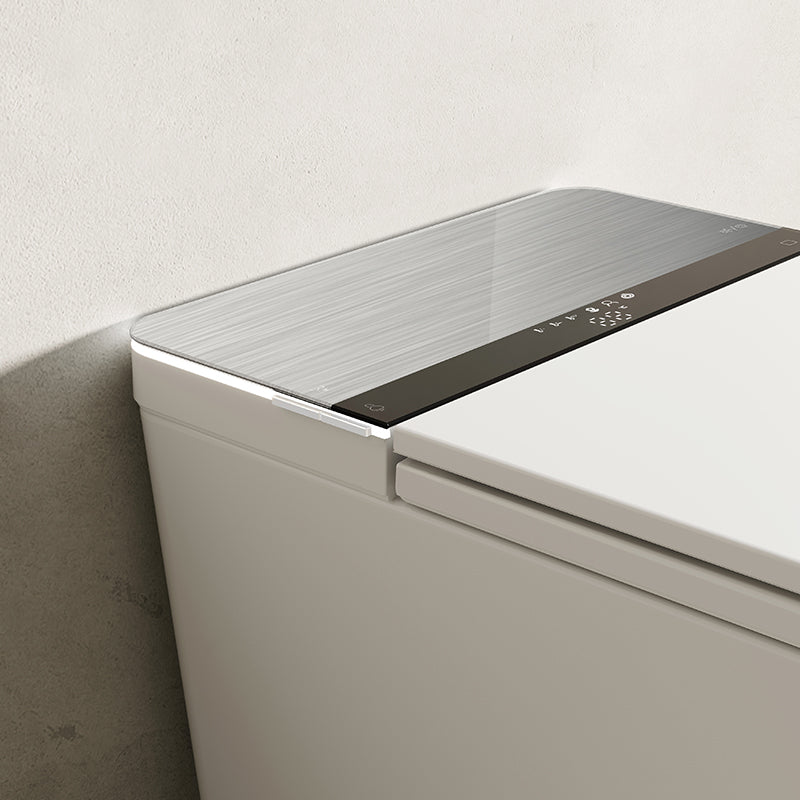

Digital Temperature Display
The integrated display shows the selected water, seat, and drying-air temperatures and provides system status and error-code information.
Optional Voice Control
Voice commands can control washing, drying, flushing, lid functions, temperatures, water pressure, lighting, ECO mode, speaker volume, and other functions.
Technical Specifications
| Specification | Details |
|---|---|
| Model | S027 |
| Product Type | Integrated floor-standing full smart toilet |
| Overall Dimensions | Approximately 685 × 396 × 438 mm |
| Height with Lid Open | Approximately 930 mm |
| Standard Color | White |

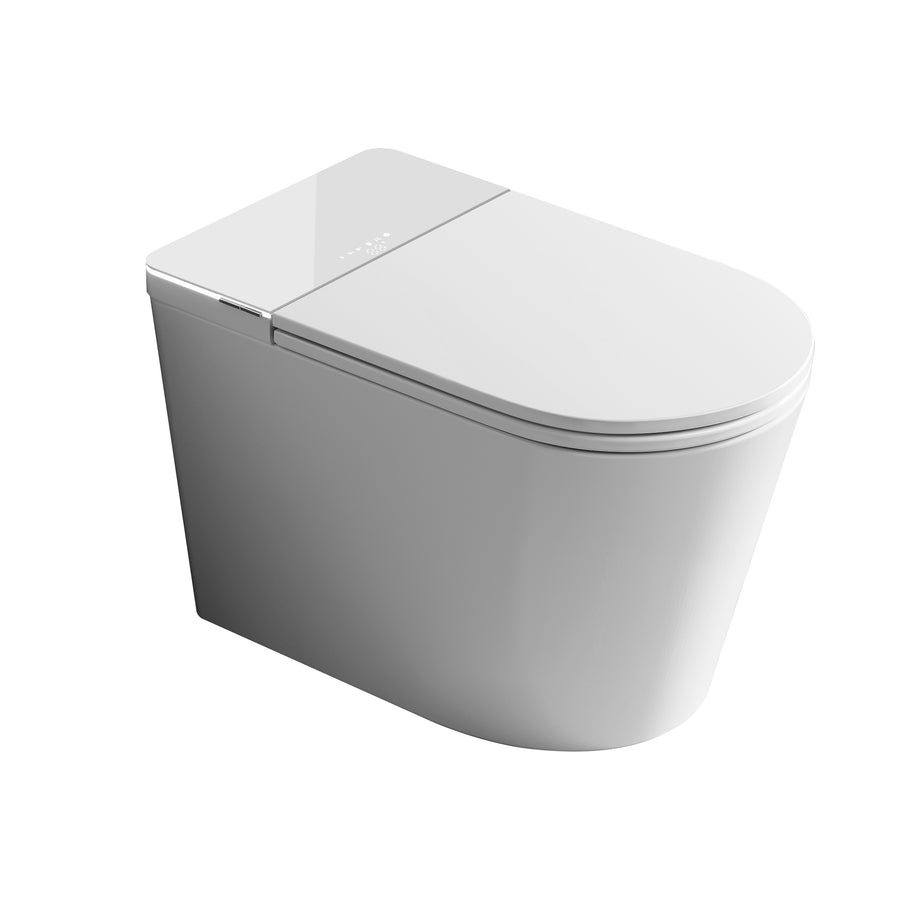

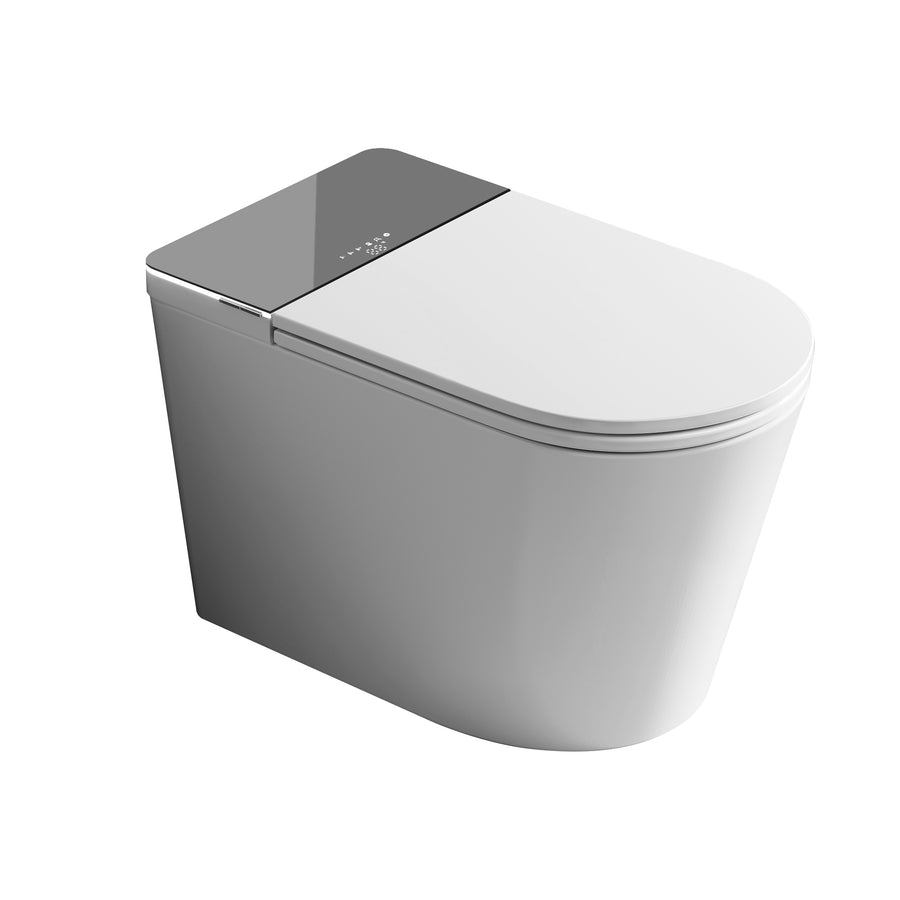

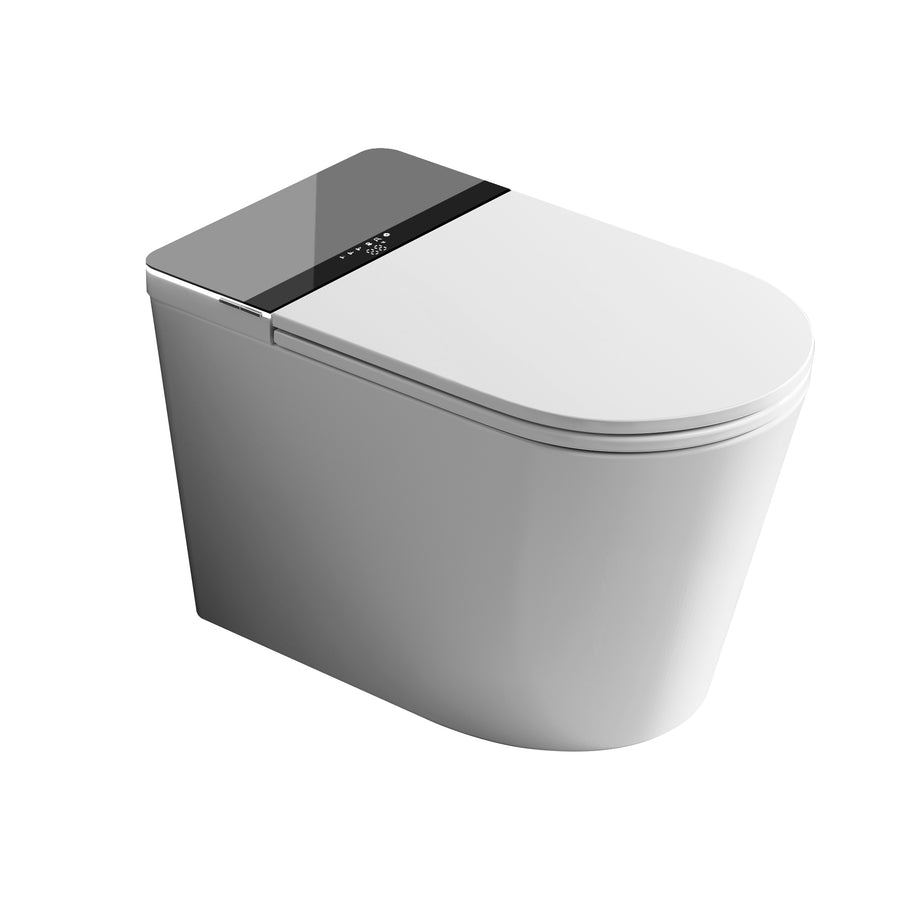

| Optional Colors | Available subject to order quantity |
| Standard Rough-In | 305 mm / 12 inches |
| Additional Rough-In Options | 250 mm and 400 mm are shown in the dimension drawing; confirm before ordering |
| Drainage Type | Floor outlet |
| Trap Type | S-trap |
| Outlet Diameter | ≤80 mm |
| Flushing System | Siphonic jet flushing |
| Flush Volume | Approximately 5.0 L |
| Water Pressure - Pump Version | 0.08-0.75 MPa |
| Water Pressure - Solenoid-Valve Version | 0.15-0.75 MPa |
| Rated Voltage | 110V/60Hz or 220V/50Hz |
| Rated Power | Approximately 1150W / 1050W, depending on voltage configuration |
| Waterproof Rating | IPX4 |
| Power Cord Length | Approximately 1.5 m |
| Plug Type | US / EU / UK / AU / customized plug |
| Water Heating System | Instant heating |
| Instant Heating Power | Up to approximately 1600W, depending on configuration |
| Water Temperature Settings | Ambient / 33°C / 37°C / 39°C |
| Water Pressure Settings | 3 levels |
| Nozzle Position Settings | 5 levels |
| Washing Modes | Rear wash / front wash / oscillating wash / massage wash / child wash |
| Nozzle Cleaning | Automatic self-cleaning |
| Heated Seat Power | Approximately 50W |
| Seat Temperature Settings | Ambient / 33°C / 37°C / 39°C |
| Drying Heater Power | Approximately 230W |
| Drying Temperature Settings | Ambient / 45°C / 50°C / 55°C |
| High-Speed Drying | Optional |
| Automatic Deodorization | Available |
| Air Refreshing | Available depending on configuration |
| Aromatherapy | Available depending on configuration |
| Foam Shield | Available depending on configuration |
| Human Presence Sensor | Available depending on configuration |
| Foot-Sensor Flushing | Available depending on configuration |
| Foot-Sensor Lid/Seat Operation | Optional |
| Automatic Lid Opening | Optional |
| Automatic Flushing | Available |
| Bowl Pre-Wetting | Available depending on configuration |
| Ambient Light | Available |
| Night Light | Available |
| Digital Display | Water, seat and drying-air temperature display |
| Voice Control | Optional; language and commands depend on configuration |
| User Memory | User 1 and User 2 settings |
| ECO Mode | Available |
| UV Nozzle Sterilization | Optional |
| Power-Outage Flushing | Supported with backup battery |
| Antibacterial Components | Seat and nozzle, depending on configuration |
| Operation | Side control buttons and remote control |
| Safety Protection | Thermal fuse, ground protection, thermostat, temperature sensors and over-temperature protection |
| Water and Energy Efficiency | Level 2 according to the instruction manual |
| Available Certification | CE |
Safety and Hygiene Features
- Seat occupancy sensor
- Water-temperature sensor
- Seat-temperature sensor
- Drying-air temperature sensor
- Thermostat protection
- Thermal fuse protection
- Ground protection
- Over-temperature protection
- Anti-backflow protection
- Anti-siphon protection
- Water filtration
- Automatic nozzle cleaning
- Optional UV nozzle sterilization
- Automatic deodorization
- Foam-shield splash and odor protection
- Bowl pre-wetting
- Antibacterial seat and nozzle options
- Low-temperature burn protection
- Power-outage flushing
Available Functions and Options
- Rear wash
- Front wash
- Oscillating wash
- Massage washing
- Child wash
- Adjustable water temperature
- Adjustable water pressure
- Adjustable nozzle position
- Heated seat
- Warm-air drying
- High-speed drying
- Foam-shield system
- Aromatherapy module
- Automatic deodorization
- Air-refreshing system
- Human presence sensing
- Foot-sensor flushing
- Foot-sensor lid and seat operation
- Automatic lid opening and closing
- Automatic flushing after use
- Automatic bowl pre-wetting
- Voice control
- User memory
- ECO mode
- UV nozzle sterilization
- Ambient light
- Night light
- Backup battery flushing
- Pump-assisted or solenoid-valve flushing
OEM/ODM Customization
We support OEM and ODM customization for:
- Product functions and configuration
- Voice-control language and commands
- Aromatherapy configuration
- Voltage and frequency
- Plug type
- Rough-in size
- Flushing system
- Product color and decorative parts
- Customer logo and product nameplate
- Digital display and control-panel design
- Remote-control design
- Instruction manual and language
- Product labels and barcodes
- Retail and export packaging
- Private-label production
Order Information
| Order Item | Details |
|---|---|
| Minimum Order Quantity | 1 unit |
| Sample Lead Time | Approximately 10 days |
| Mass Production Lead Time | Approximately 30 days |
| Available Certification | CE |
| Packaging | Kraft carton with reinforced wooden frame |
| OEM/ODM | Functions, configuration, branding and packaging |
| Warranty | Subject to order agreement and target market |
| Spare Parts Support | Available |
Request a Quote or Sample
Please provide your target market, required quantity, rough-in size, voltage, plug type, and preferred functions. Our team will recommend the correct S027 configuration and provide an OEM quotation.
